CUBYCON Big on the inside
-
Detail
Highlights
Why we love this product

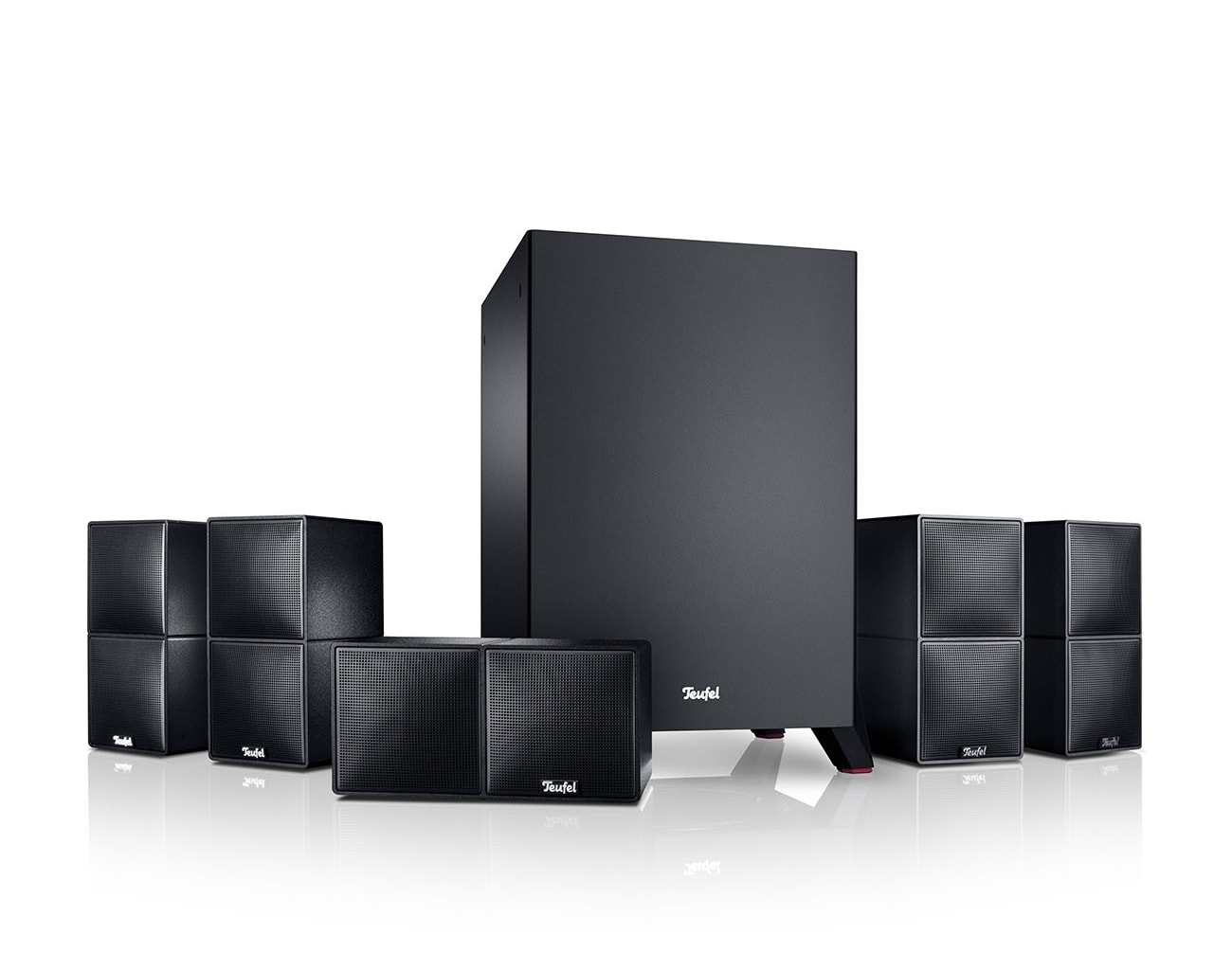

The new Cubycon is an attractive little surround sound set with surprisingly big sound. Expect distortion-free playback at high volumes, thrilling effects and clear details, all from an easily placed and extremely stylish little speaker system.
Key advantages at a glance
- High-end home cinema set with small, easily placed satellites
- 2-way micro satellites with coax drivers fashioned from premium aluminium
- Neutral playback, realistic localization & surround sound with excellent speech intelligibility

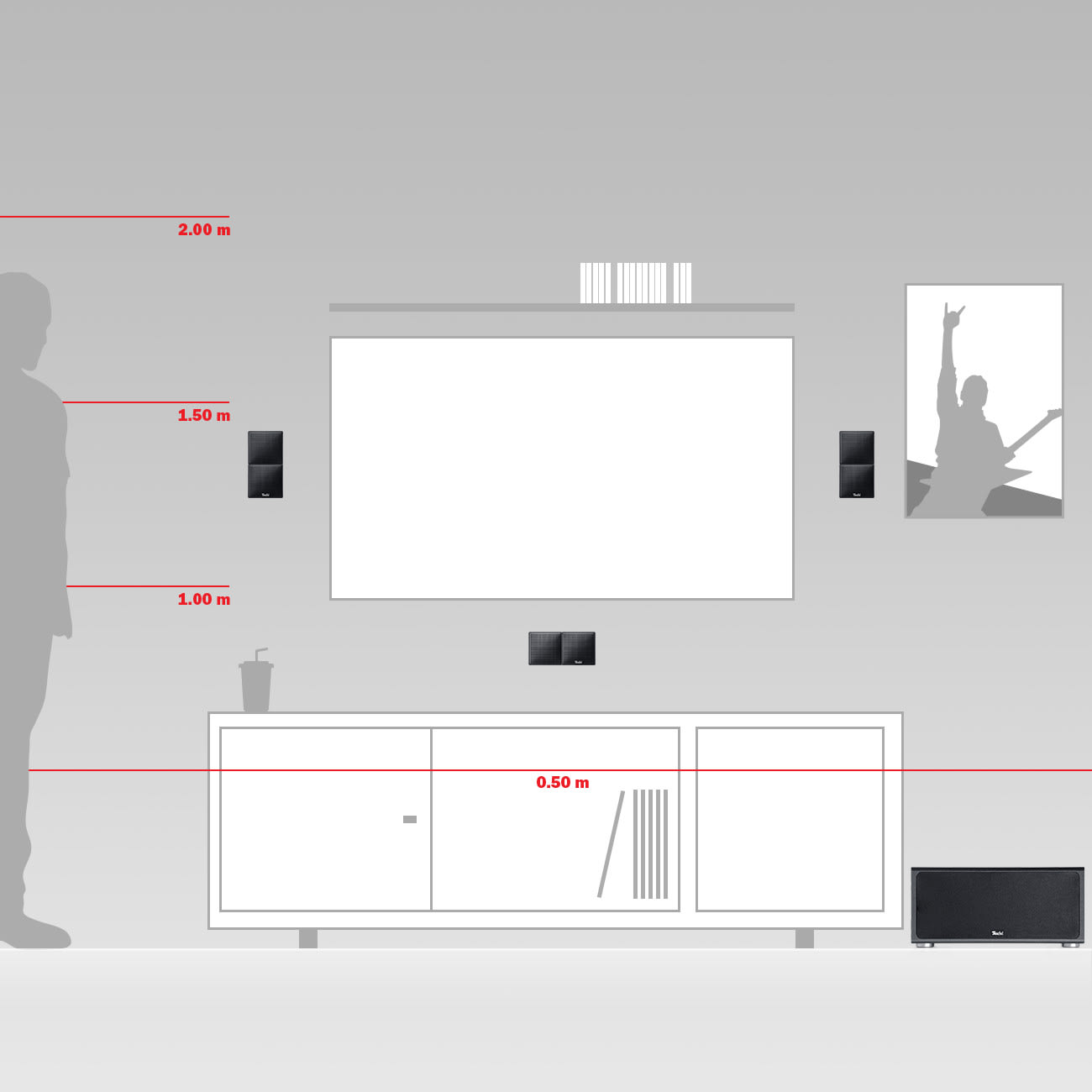

- Can be placed horizontally or vertically on a shelf, on the wall or on speaker stands
- Powerful subwoofer can be configured in either front- or down-firing modes, can be paired wirelessly

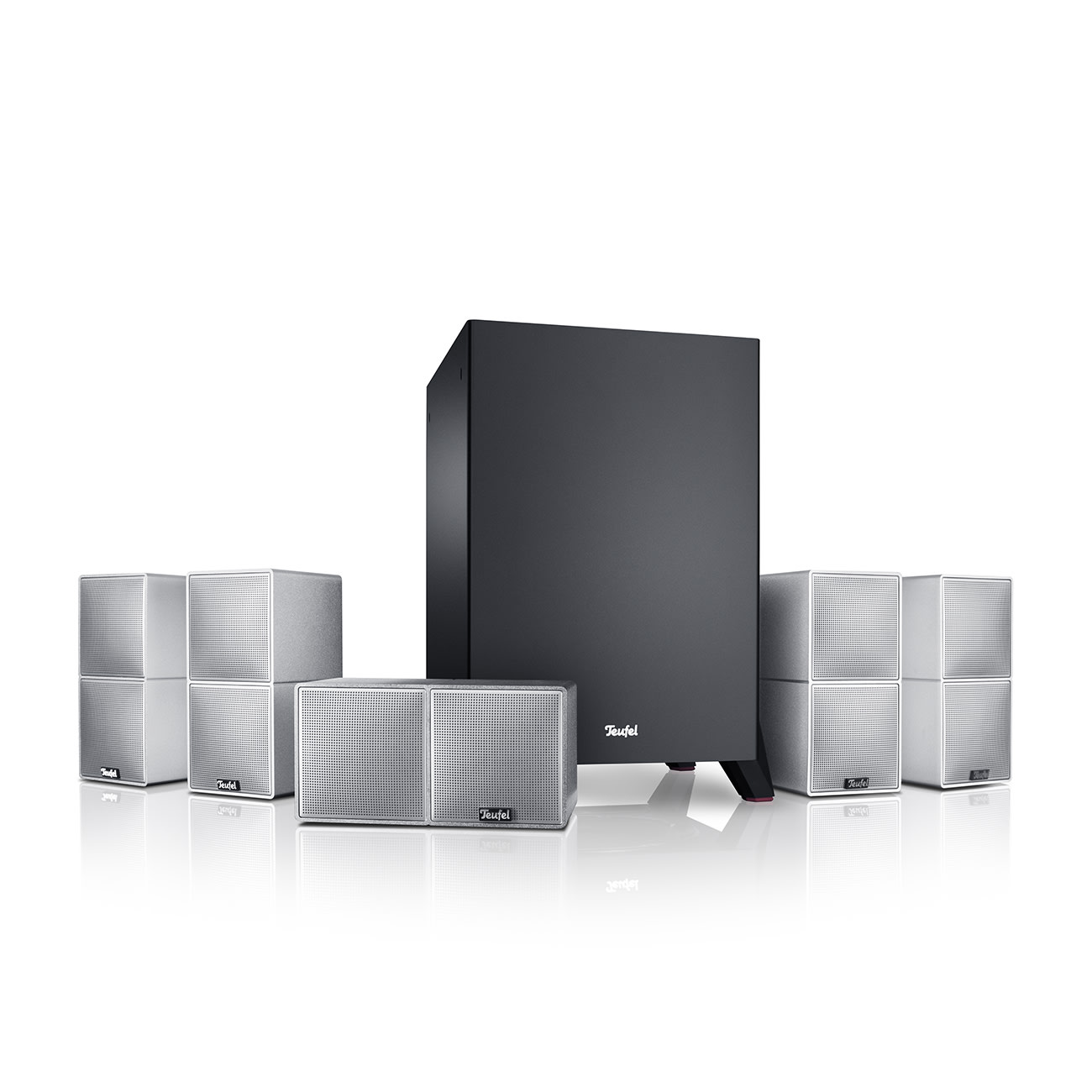

- Compatible with all standard A/V receivers, available in black or silver, and as a complete system
Features
All technologies at a glance
The legendary Cubycon, now better than ever
The darling of audio journalists and customers alike, the original Cubycon offered just about everything a style-conscious home cinema fan could ask for: True surround sound from a set that fits perfectly into any interior. The new Cubycon was further improved resulting in a system even more stunning, better sounding and yet every bit as compact as its predecessor.
AV receiver required
This surround set requires an AV receiver to be used. It amplifies and distributes audio and visual signals. If you do not already have a compatible AV receiver, you can find many options under our accessories category or complete sets in our home cinema category that come prepackaged with a receiver.
Interesting, relevant info on the Teufel Blog
HIFI vs Home Cinema
HIFI and Home Cinema are terms that often come up in the world of audio. But it isn't always clear what they mean. This article clears up the basic terms.
Read more Show me moreSpecifications
Satellite Speaker CUB 2 FR 15 (pcs.)
High-end 2-way micro speakers with solid aluminium enclosures.
-
Description Item Width 9.5 cm Height 18.8 cm Depth 9.7 cm Weight 1.4 kg -
Description Item Terminal clamps Gold-plated screw terminals Minimum amplifier output power recommended 20 W High level speaker outputs 1 -
Description Item Suitable for AV receiver Yes Banana plug compatible Yes Maximum cable diameter 4 mm Equalization port (position) back Equalization port 2 Cabinet material Aluminum Cabinet surface Anodised Magnetic shielding Yes Net internal volume 1.2 L Keyhole plate mounted Yes Wall mounting brackets Yes Tweeter (number per enclosure) 1 Tweeter (diameter) 20 mm Tweeter (material) Silk Midrange driver (number per enclosure) 2 Midrange driver (diameter) 80 mm Midrange driver (material) cellulose Continuous power handling (IEC - Long Term) 100 W Sensitivity (2.83 V / 1 m) 90 dB Frequency range 200 - 20000 Hz Peak power capacity (IEC - Short Term) 140 W Maximum sound pressure level 100 dB/1m Impedance 4 - 8 Ohm Crossover frequency to Woofer (recommended) 150 - 200 Hz Acoustic principle 2-way-system Enclosure type Bass reflex Crossover frequency internal switch 5000 Hz
Centre Speaker CUB 2 C 15
High-end 2-way micro loudspeaker made of solid aluminium
-
Description Item Width 18.8 cm Height 9.5 cm Depth 9.7 cm Weight 1.4 kg -
Description Item High Level speaker inputs 1 Terminal clamps Gold-plated screw terminals Minimum amplifier output power recommended 20 W -
Description Item Suitable for AV receiver Yes Banana plug compatible Yes Maximum cable diameter 4 mm Equalization port (position) back Equalization port 2 Cabinet material Aluminum Cabinet surface Anodised Magnetic shielding Yes Net internal volume 1.2 L Keyhole plate mounted Yes Wall mounting brackets Yes Tweeter (number per enclosure) 1 Tweeter (diameter) 20 mm Tweeter (material) Silk Midrange driver (number per enclosure) 2 Midrange driver (diameter) 80 mm Midrange driver (material) cellulose Continuous power handling (IEC - Long Term) 100 W Sensitivity (2.83 V / 1 m) 90 dB Frequency range 200 - 20000 Hz Peak power capacity (IEC - Short Term) 140 W Maximum sound pressure level 100 dB/1m Impedance 4 - 8 Ohm Crossover frequency to Woofer (recommended) 150 - 200 Hz Acoustic principle 2-way-system Enclosure type Bass reflex Crossover frequency internal switch 5000 Hz
T 8 Subwoofer
High-end-class active subwoofer that can be configured in either front- or down-firing modes. Measurements shown below reflect downfiring mode including feet. Frontfiring mode including feet measures 37.3 cm high, 31.1 cm wide and 36.0 cm tall.
-
Description Item Width 31.1 cm Height 42.3 cm Depth 38 cm Weight 11 kg -
Description Item Cinch input 1 -
Description Item Power supply voltage 230 V Automatic on/off Yes Maximum power consumption 100 W Fixed AC power cable Yes Safety class 2 Fuse Yes Storage for settings when disconnected Yes Standby-Function Yes Standby-Power consumption 1 W Bass boost/EQ Yes Input gain adjustment Yes Frequency regulator (range) 37 - 200 Hz Level control Yes Phase control Yes Wireless Subwoofer Yes Power output capacity impulse (peak) Bass 100 W Amplifier configuration 1.0 Amplifier technology Class D Amplifier channels 1 -
Description Item Lowest frequency (-3 dB) 37 Hz Suitable for AV receiver Yes Equalization port 1 Down-firing Yes Front-firing Yes Cabinet material MDF Cabinet surface Laminated, matte Integrated stand Yes Woofer (number per enclosure) 1 Woofer (diameter) 200 mm Woofer (material) Aluminium Frequency range 35 - 210 Hz Maximum sound pressure level 111 dB/1m Acoustic principle 1-way-system Enclosure type Bass reflex
-
