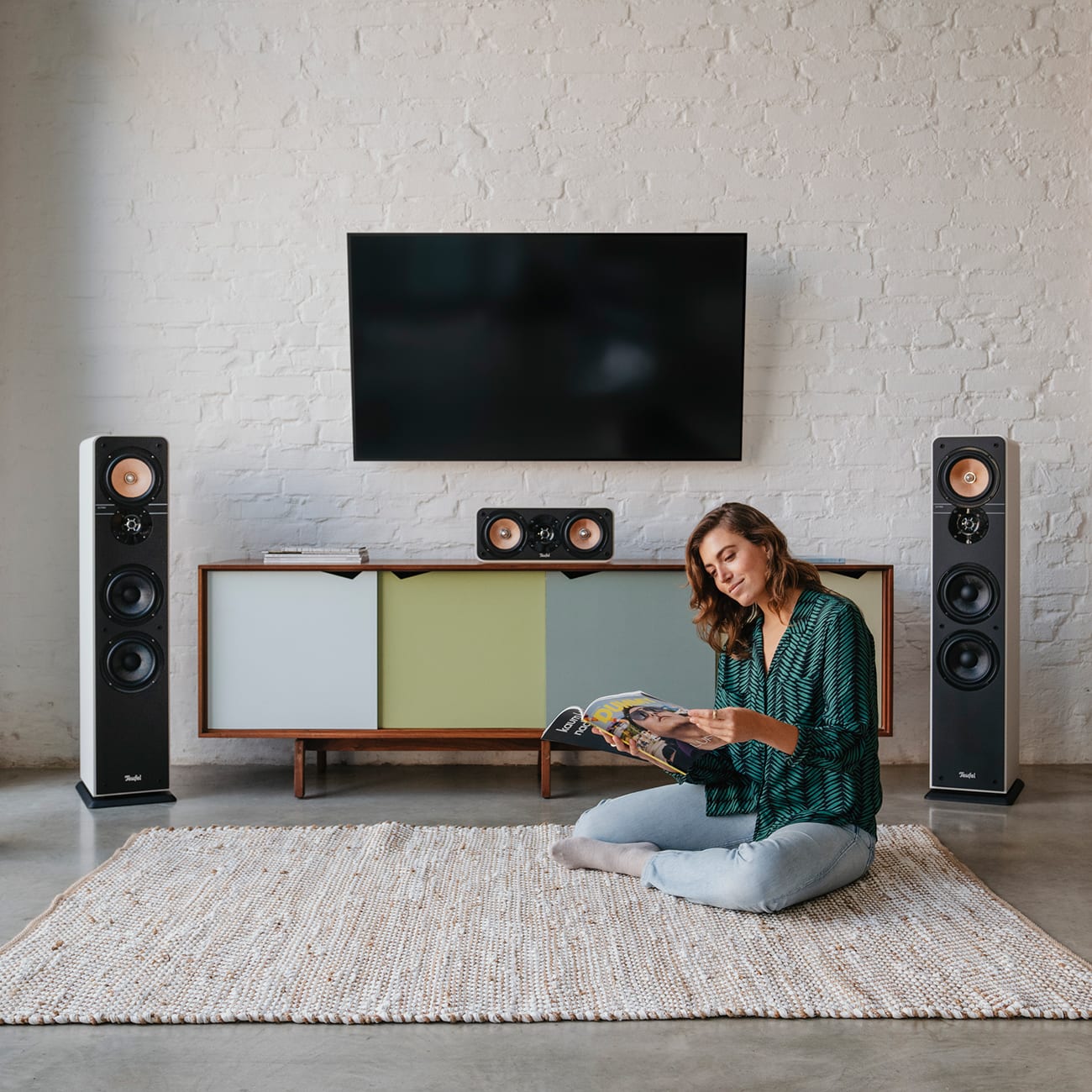

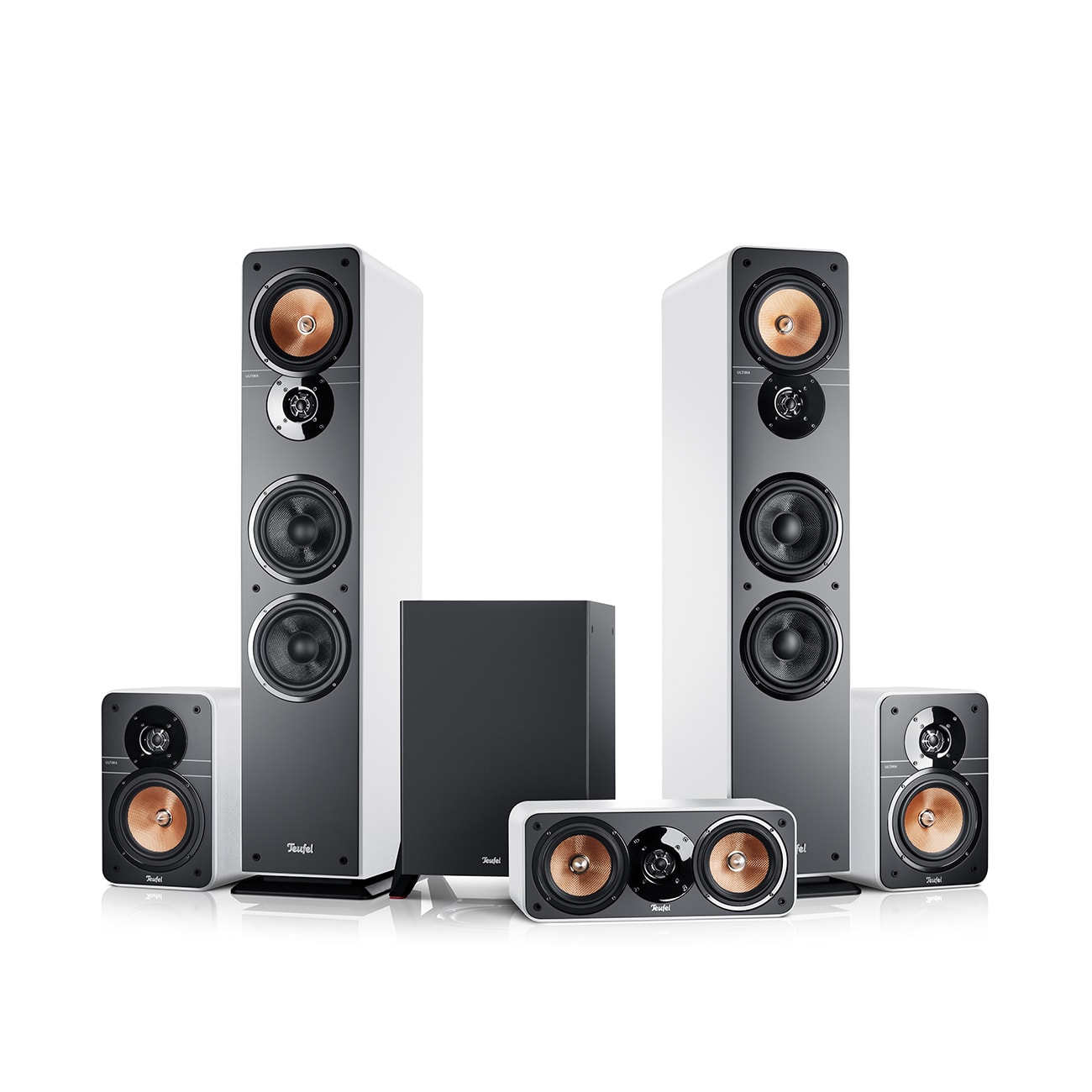

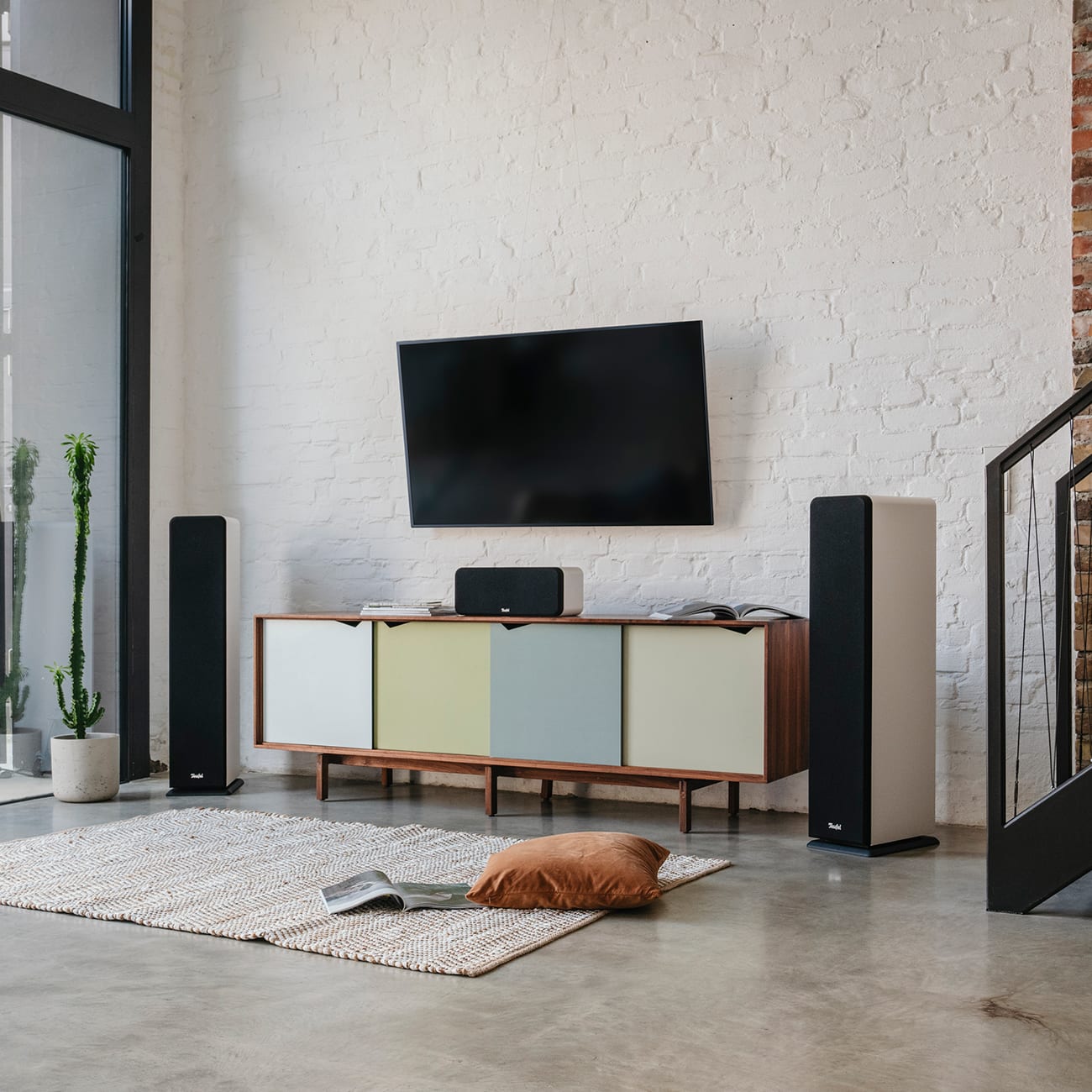

Ultima 40 Surround "5.1-Set" Dream team
-
Detail
Highlights
Why we love this product
The all-star lineup that can do no wrong. Only Teufel can give you this much Surround Sound for this little money. Featuring of course our most popular floor-standing speaker, the Ultima.
Key advantages at a glance
- High-end 5.1 home cinema set with our bestselling ULTIMA 40 speakers
- Immersive high-quality sound for home cinema, music and gaming with precise spatial positioning of all sound events
- Tweeter with phase plug for optimized sound dispersion and more balanced dynamics
- Powerful subwoofer can be configured as front- or down-firing, optional wireless connection
- 3-way system with two extremely heavy-duty subwoofers for distortion free playback at any volume

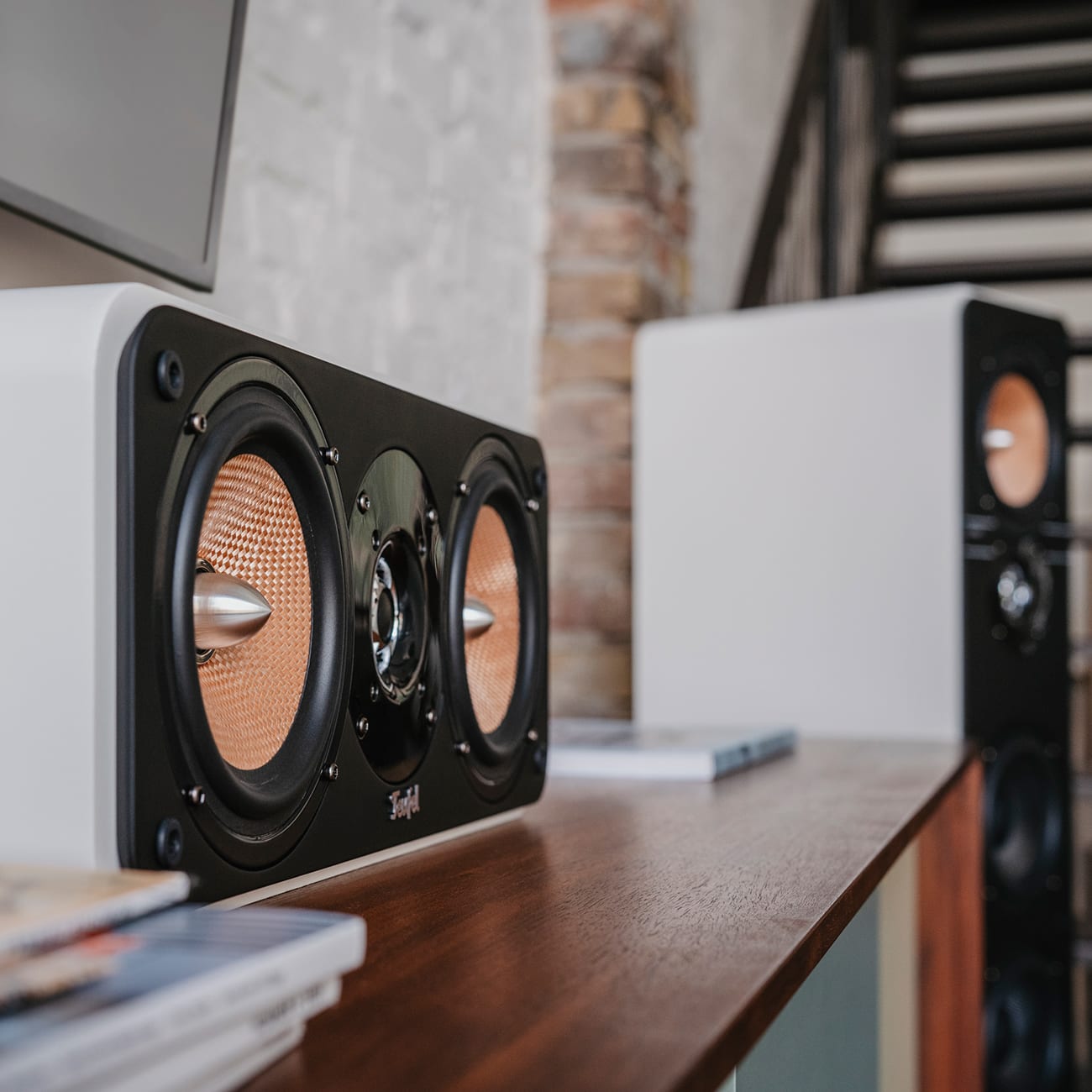

- ULTIMA 20 as rear speaker, center speaker with double mid-range driver for crisp, intelligible dialogue
- Large 25 mm tweeter with phase plug and wave guide for detailed imaging
- Compatible with all AV receivers, can be placed on stands, shelves or wall-mounted
"...a big step up."
modernhifi.de 04/12/2018 All test reviews (4.9 of 5 out of 551) All reviewsFeatures
All technologies at a glance

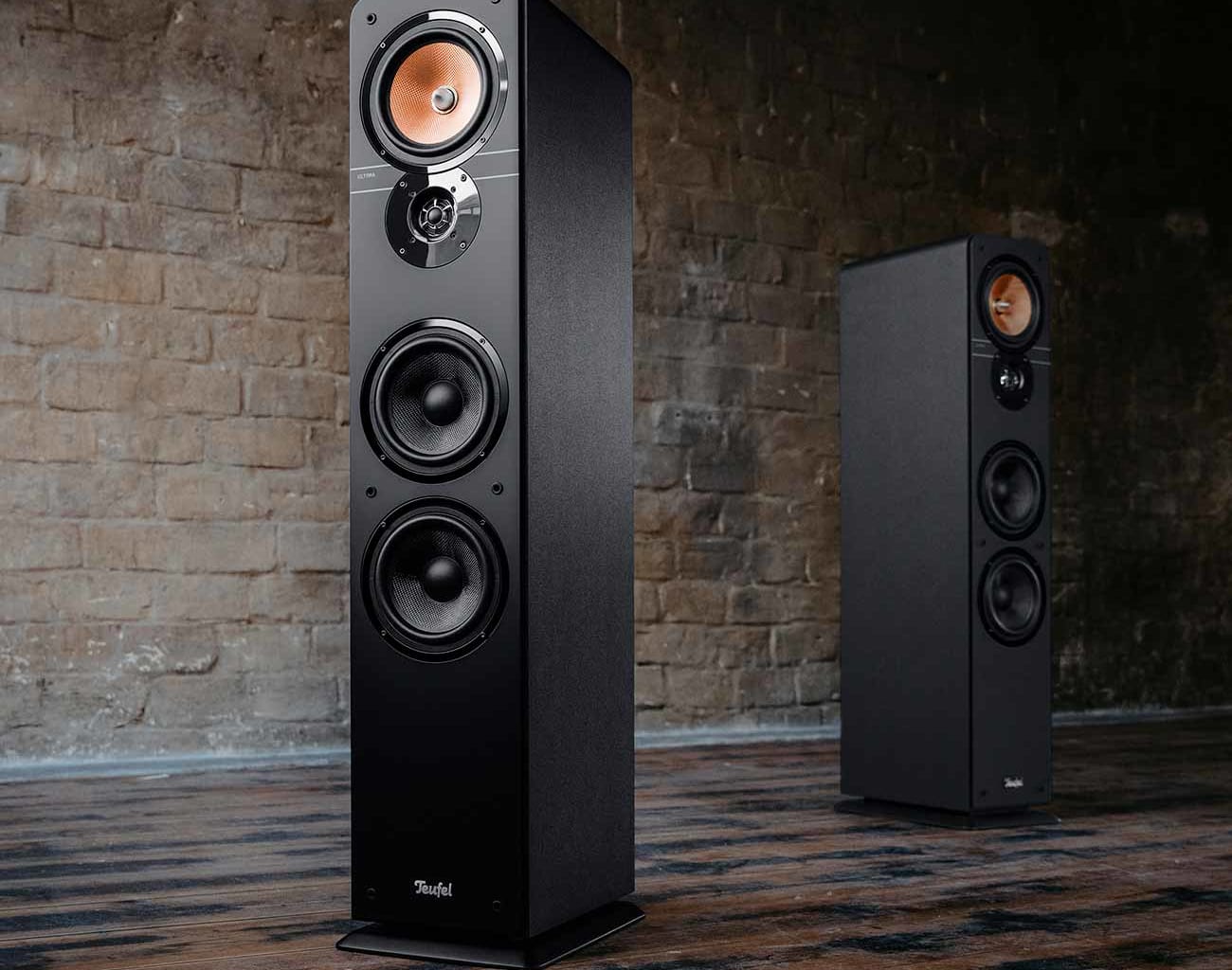

A Berlin Bestseller: The ULTIMA Series
For years, the ULTIMA series has stood as a benchmark for exceptional value in audio. Now, Teufel Audio brings you unmatched sound quality at an unbeatable price. With advanced audio technologies, the ULTIMA series ensures balanced playback, enhancing your experience across music genres, gaming, and cinema. Praised by industry experts and customers alike, the new ULTIMA speakers are easily distinguished by the label above the tweeter.
Spectacular immersion
At Teufel, all our bundles are designed for finely-tuned high-fidelity playback. As a result, you can experience immersive soundscapes for movies, enjoy rousing concert atmosphere on Blu-ray, and hear exactly where those footsteps are coming from in video games.
Compatible with all AV receivers
Thanks to their high efficiency, Ultima speakers can be paired with any AV receiver or amplifier to produce excellent sound quality. For rooms over 20 m², we recommend AV receivers from Denon and Marantz.

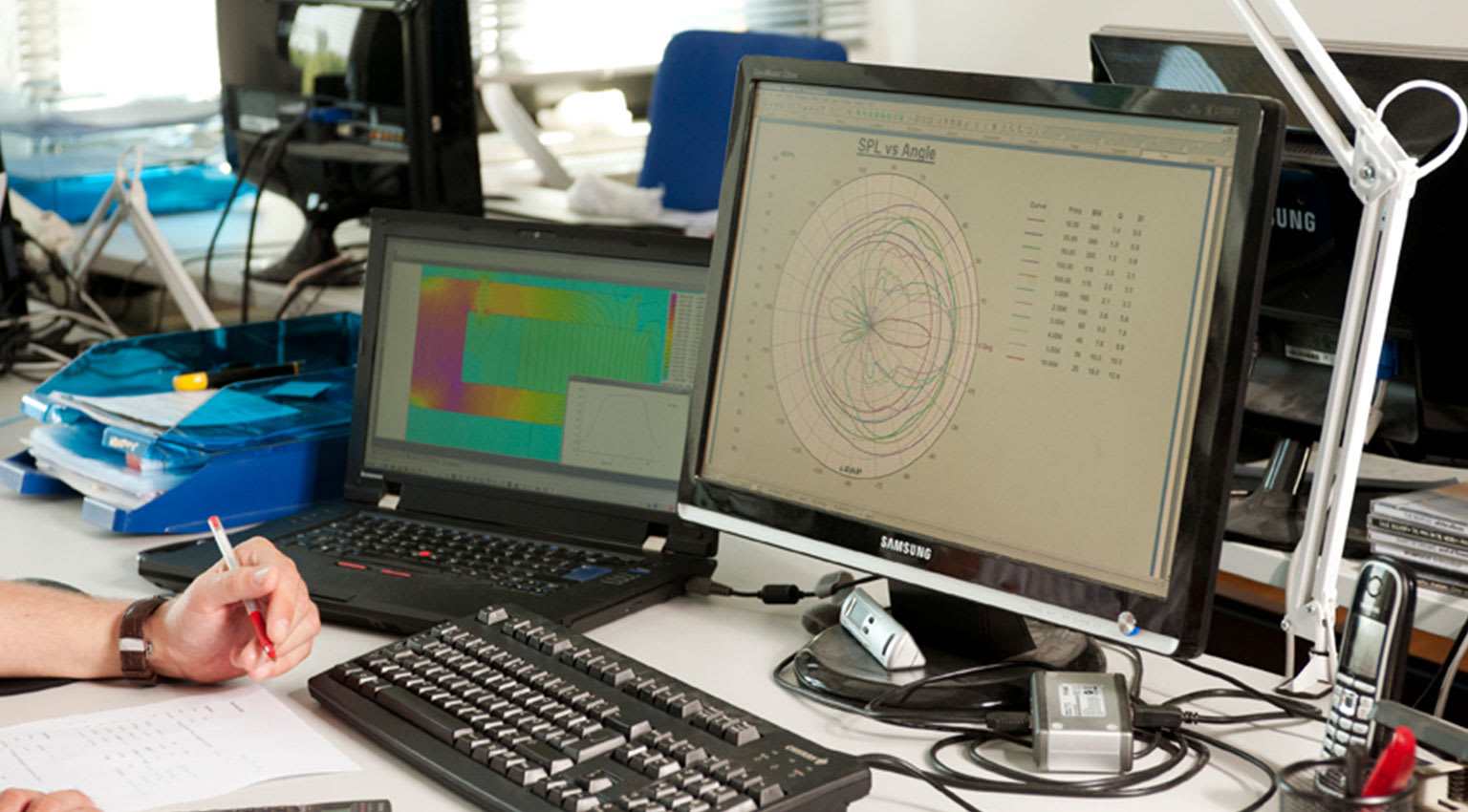

Crafted in Berlin: The Heart of Innovation
At Teufel Audio, innovation knows no bounds. Our ULTIMA series, including the acclaimed ULTIMA 40, undergoes meticulous development right here in our Berlin labs and anechoic chambers. Years of collaborative refinement and customer feedback culminate in the engineering marvel that is the ULTIMA 40, a testament to our commitment to excellence.

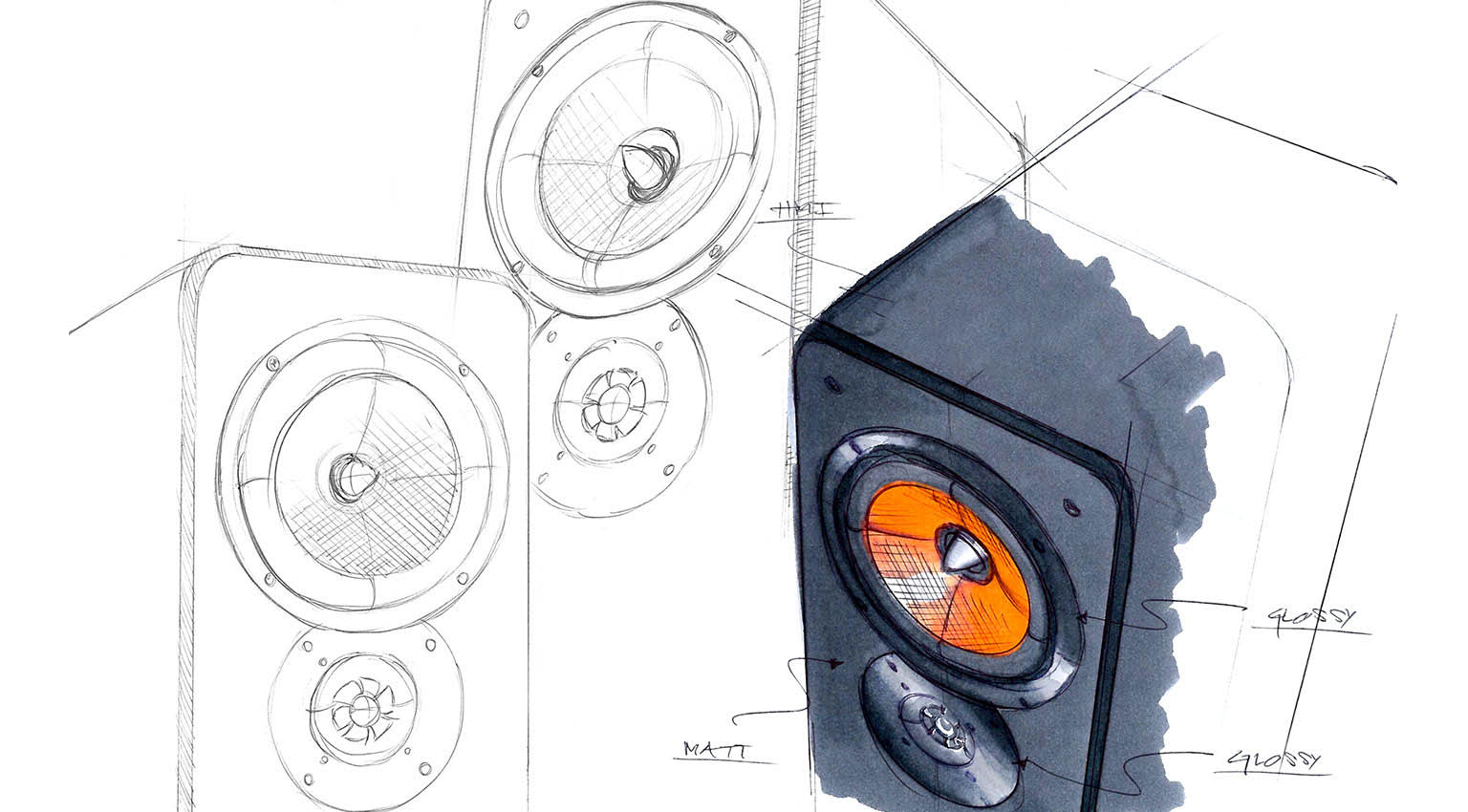

The first sketches

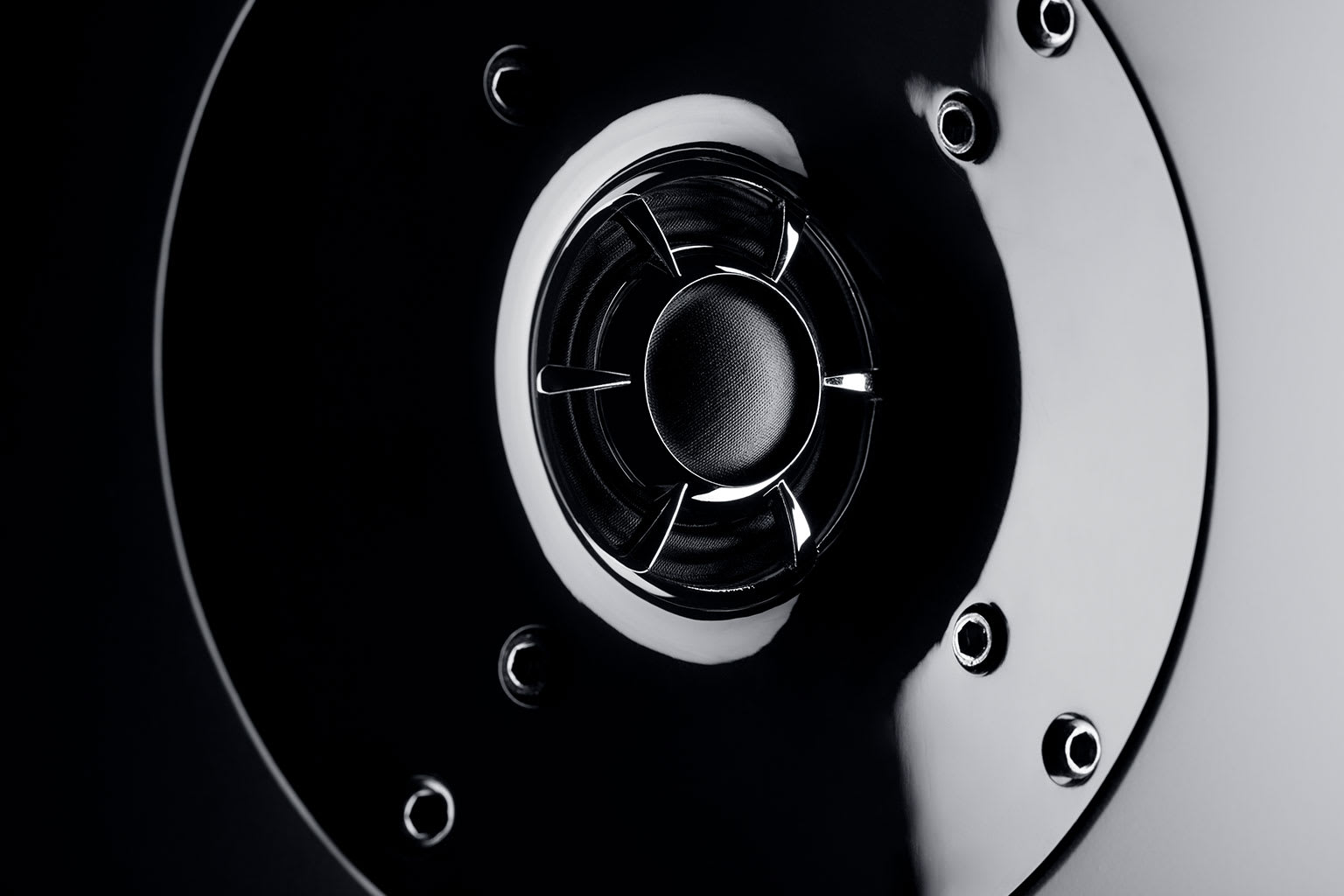

Precision Engineering: Tweeter with Phase Plug and Waveguide
Setting a new standard in its price range, our speakers boast cutting-edge features including a built-in phase plug and waveguide, ensuring unparalleled precision in the high-frequency range.
Phase plugDesigned to minimize phase interference near the tweeter, directing waves outward toward the listener for enhanced response in high-frequency bandpasses.
Exacting in its function, the waveguide meticulously guides each sound, preserving clarity and distinctness of every instrument and voice for an immersive listening experience.

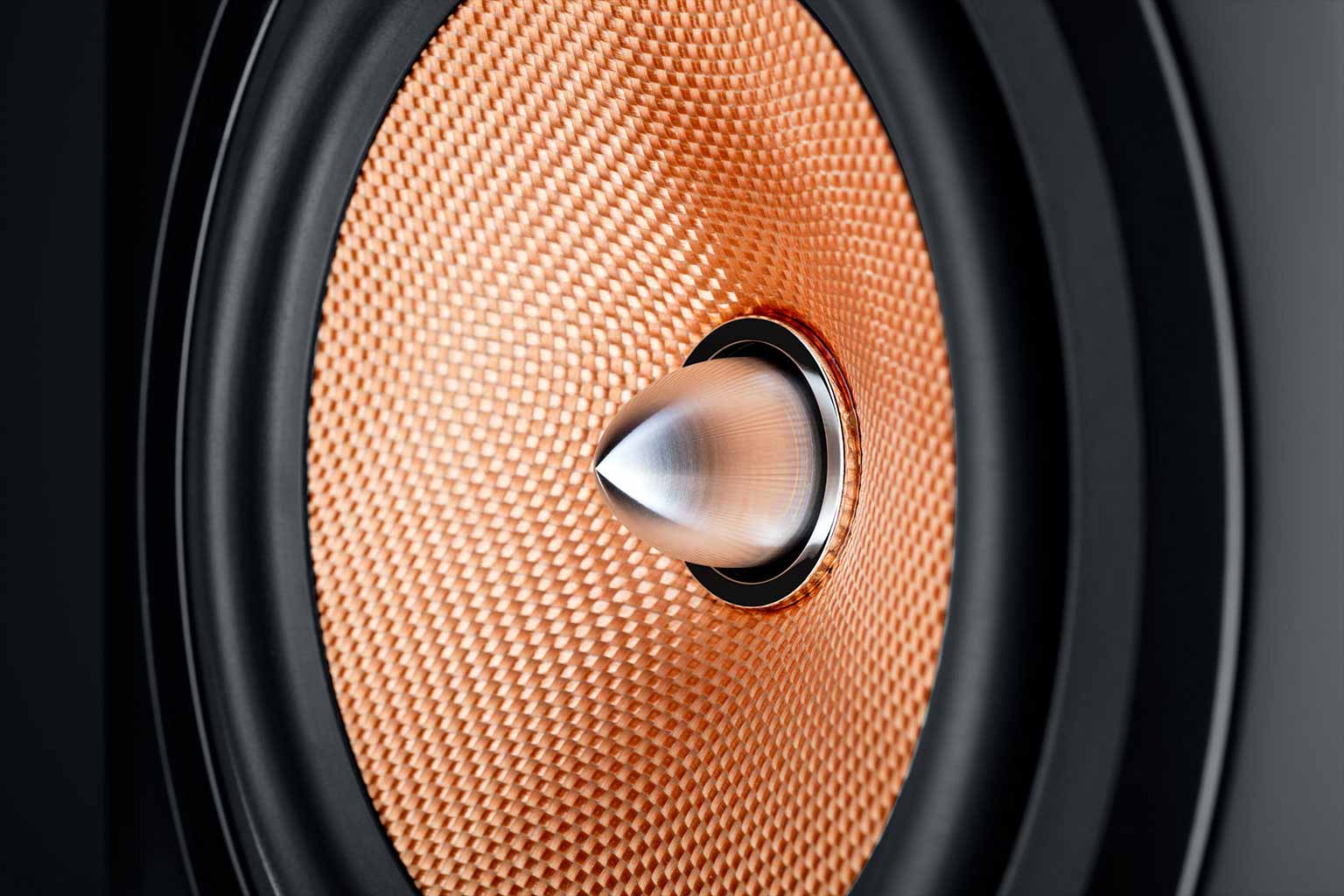

Advanced Performance: Kevlar Mid-Range Driver with Phase Plug
Our meticulously crafted mid-range driver combines a generous size with a phase plug, ensuring not only clear and intelligible speech but also a rich, natural mid-range tone. Experience optimal sound dispersion across a wider area, delivering unparalleled warmth and clarity throughout your listening space.
Specifications
Centre speaker UL 40 C Mk3 18
High-end Hi-Fi centre speaker
-
Description Item Width 42 cm Height 16.9 cm Depth 15.9 cm Weight 5.7 kg -
Description Item Terminal clamps Gold-plated screw terminals -
Description Item Banana plug compatible Yes Maximum cable diameter 4 mm Removable front cover Yes Cabinet material MDF Cabinet surface Laminated Keyhole plate mounted Yes Wall mounting brackets Yes Tweeter (number per enclosure) 1 Tweeter (diameter) 25 mm Tweeter (material) Textile Bass/Midrange driver (number per enclosure) 2 Bass/Midrange driver (diameter) 130 mm Bass/Midrange driver (material) Kevlar/ fibreglass Continuous power handling (IEC - Long Term) 100 W Sensitivity (2.83 V / 1 m) 88 dB Frequency range 90 - 20000 Hz Peak power capacity (IEC - Short Term) 150 W Maximum sound pressure level 107 dB/1m Impedance 4 - 8 Ohm Acoustic principle 2-way-system Enclosure type Closed
Floor speaker UL 40 Mk3 18 (pc.)
High-end HIFI floorstanding speakers
-
Description Item Width 21.5 cm Height 106.5 cm Depth 32 cm Weight 20 kg -
Description Item Terminal clamps Screw terminal, gold-plated -
Description Item Suitable for AV receiver Yes Banana plug compatible Yes Bi-Amping/Bi-Wiring Yes Maximum cable diameter 4 mm Equalization port (position) back Equalization port 2 Removable front cover Yes Cabinet material MDF Cabinet surface Laminated Net internal volume 54 L Spikes prepared Yes Integrated stand Yes Tweeter (number per enclosure) 1 Tweeter (diameter) 25 mm Tweeter (material) Textile Midrange driver (number per enclosure) 1 Midrange driver (diameter) 165 mm Midrange driver (material) Kevlar Woofer (number per enclosure) 2 Woofer (diameter) 165 mm Woofer (material) Fibreglas Continuous power handling (IEC - Long Term) 120 W Sensitivity (2.83 V / 1 m) 87 dB Frequency range 39 - 20000 Hz Peak power capacity (IEC - Short Term) 200 W Maximum sound pressure level 108 dB/1m Impedance 4 - 8 Ohm Acoustic principle 3-way-system Enclosure type Bass reflex
UL 20 Mk3 18 bookshelf speaker (pc.)
High-end Hi-Fi bookshelf speakers
-
Description Item Width 21.5 cm Height 33.5 cm Depth 23.5 cm Weight 5.7 kg -
Description Item Terminal clamps Gold-plated screw terminals Minimum amplifier output power recommended 20 W -
Description Item Banana plug compatible Yes Maximum cable diameter 4 mm Equalization port (position) back Equalization port 1 Removable front cover Yes Cabinet material MDF Cabinet surface Laminated Net internal volume 10 L Wall mounting brackets Yes Tweeter (number per enclosure) 1 Tweeter (diameter) 25 mm Tweeter (material) Textile Bass/Midrange driver (number per enclosure) 1 Bass/Midrange driver (diameter) 165 mm Bass/Midrange driver (material) Fibreglas Continuous power handling (IEC - Long Term) 50 W Sensitivity (2.83 V / 1 m) 87 dB Frequency range 70 - 20000 Hz Peak power capacity (IEC - Short Term) 80 W Maximum sound pressure level 104 dB/1m Impedance 4 Ohm Acoustic principle 2-way-system Enclosure type Bass reflex Crossover frequency internal switch 2600 Hz
T 10 Subwoofer
High-end-class active subwoofer that can be configured in either front- or down-firing modes
-
Description Item Width 35.1 cm Height 48.3 cm Depth 38 cm Weight 15.6 kg -
Description Item Cinch input 1 -
Description Item Power supply voltage 230 V Automatic on/off Yes Maximum power consumption 150 W Fixed AC power cable Yes Safety class 2 Fuse Yes Storage for settings when disconnected Yes Standby-Function Yes Standby-Power consumption 1 W Bass boost/EQ Yes Input gain adjustment Yes Level control Yes Phase control Yes Wireless Subwoofer Yes Power output capacity impulse (peak) Bass 150 W Amplifier configuration 1.0 Amplifier technology Class D Amplifier channels 1 -
Description Item Lowest frequency (-3 dB) 33 Hz Suitable for AV receiver Yes Equalization port 1 Down-firing Yes Front-firing Yes Cabinet material MDF Cabinet surface Laminated, matte Integrated stand Yes Woofer (number per enclosure) 1 Woofer (diameter) 250 mm Woofer (material) Aluminium Frequency range 33 - 190 Hz Maximum sound pressure level 115 dB/1m Acoustic principle 1-way-system Enclosure type Bass reflex
-
Customer ReviewsNo comments
