LT 4 + Yamaha RX-V6A "5.1-Set L" A statement for movie buffs
-
Detail
Highlights

Why we love this product
Four elegantly designed column speakers supported by the powerful sound of the T 8 subwoofer and powered by the Yamaha RX-V6A AV receiver - this bundle brings together elegance and home-cinema audio in your living room. Save money when you purchase together.
Key advantages at a glance
- Plug & play 5.1 complete system including Yamaha RX-V6A AV receiver, four elegant L 430 FR column speakers, the T 8 subwoofer, and the L 430 C center speaker for a home cinema experience in a class all its own
- For home cinema, music and gaming sound on a high level with impressive sonic immersion and pinpoint location of all sounds
- Slim brushed aluminium columns that fit nicely into any interior, lushly outfitted with four midwoofers and one tweeter each
- High-powered T 8 subwoofer provides a lush foundation of base. Can be configured in front- or down-firing modes. Can be connected wirelessly
- The Yamaha RX-V6A delivers 125 Watts of output per channel (8 Ohms, 0.9% THD), supports Dolby Atmos, Dolby True HD, DTS:X, DTS-HD Master Audio, as well as Amazon Alexa and Apple Siri
- Music streaming with Bluetooth, Amazon Music HD, AirPlay 2, Napster, Deezer, Spotify, Qobuz, pandora, SiriusXM, and TIDAL
- 30 m speaker cable and 2.5 m subwoofer cable included
Features
All technologies at a glance





T 8 Subwoofer
For the first time Teufel offers a subwoofer that can be configured in either front- or down-firing modes. Don't let the 100-Watts fool you. The new Class-D amplifier's high efficiency and extremely low noise mean it can go toe-to-toe with any 250-Watt amplifier.
- High-end-class active subwoofer, configurable in front- and down-firing modes
- 200 mm diameter subwoofer
- Power: 100-Watt, high-efficiency Class-D power amplifier with low power consumption
- Automatic on/off
- Wide variety of settings and circuit breaker
- Can be positioned horizontally or vertically with universal feet
- Integrated wireless module - compatible with Teufel Soundbar Streaming, the CINEBAR TRIOS, DUETT, ONE, and PRO lines, as well as IMPAQ receivers. Pioneer, Yamaha, Denon or Marantz receivers require the Subwoofer Wireless Transmitter




Interesting, relevant info on the Teufel Blog
Subwoofer Positioning: Tips for Perfect Placement
Perfect placement helps you get the most audio performance out of your subwoofer. What considerations should be taken into account? Because every space is unique, we wrote a blog post with all the most important tips.
Read more Show me moreSpecifications

T 8 Subwoofer
High-end-class active subwoofer that can be configured in either front- or down-firing modes. Measurements shown below reflect downfiring mode including feet. Frontfiring mode including feet measures 37.3 cm high, 31.1 cm wide and 36.0 cm tall.
-
Description Item Width 31.1 cm Height 42.3 cm Depth 38 cm Weight 11 kg -
Description Item Cinch input 1 -
Description Item Power supply voltage 230 V Automatic on/off Yes Maximum power consumption 100 W Fixed AC power cable Yes Safety class 2 Fuse Yes Storage for settings when disconnected Yes Standby-Function Yes Standby-Power consumption 1 W Bass boost/EQ Yes Input gain adjustment Yes Frequency regulator (range) 37 - 200 Hz Level control Yes Phase control Yes Wireless Subwoofer Yes Power output capacity impulse (peak) Bass 100 W Amplifier configuration 1.0 Amplifier technology Class D Amplifier channels 1 -
Description Item Lowest frequency (-3 dB) 37 Hz Suitable for AV receiver Yes Equalization port 1 Down-firing Yes Front-firing Yes Cabinet material MDF Cabinet surface Laminated, matte Integrated stand Yes Woofer (number per enclosure) 1 Woofer (diameter) 200 mm Woofer (material) Aluminium Frequency range 35 - 210 Hz Maximum sound pressure level 111 dB/1m Acoustic principle 1-way-system Enclosure type Bass reflex

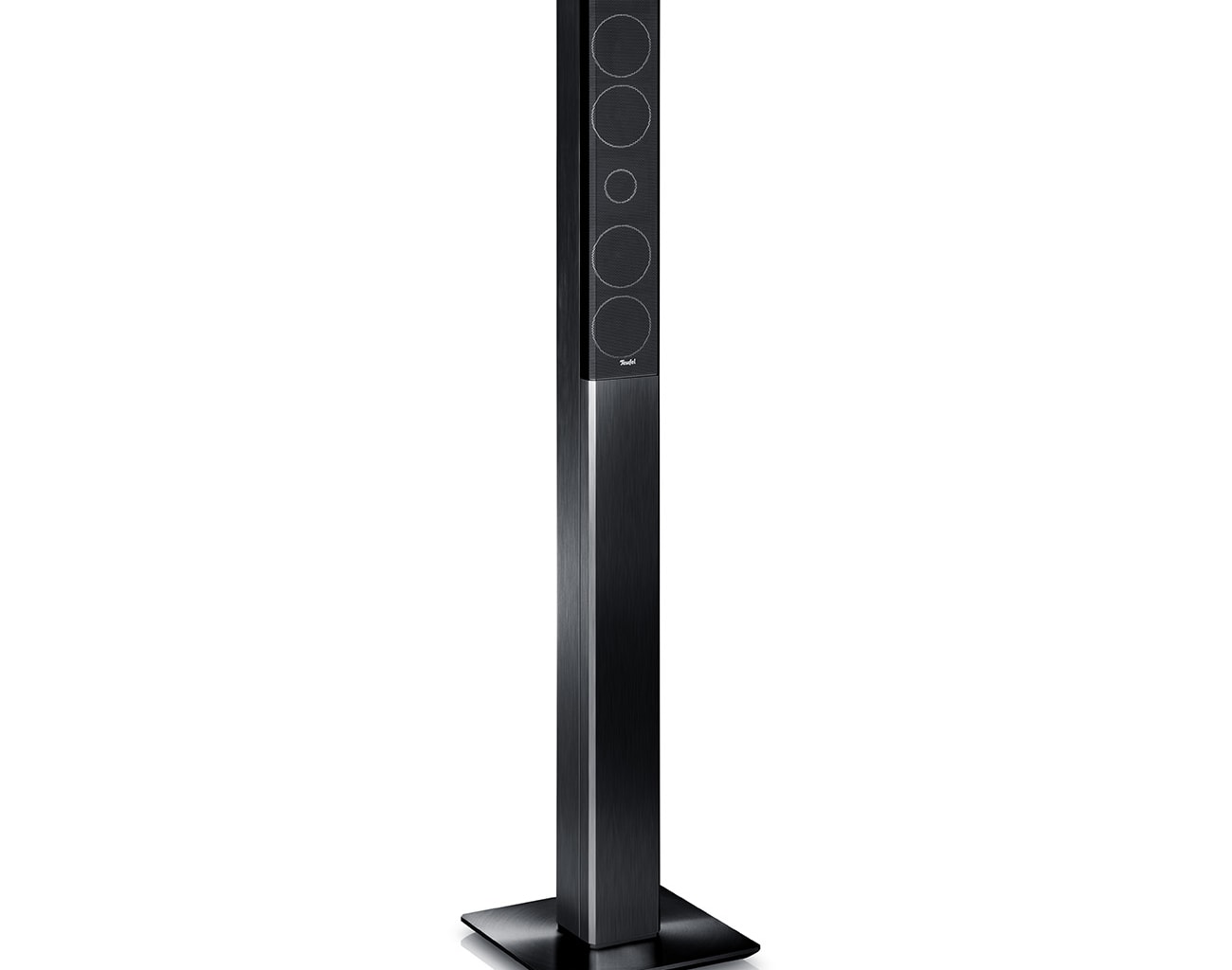

Pair Column Speaker L 430 FR (pcs.)
The L 430 FR are high-performance hi-fi column speakers made from aluminium. Their sound is identical to that produced by the L 430 C, L 430 FCR and Trios.
-
Description Item Width 9.1 cm Height 114.3 cm Depth 9.1 cm Weight 5.8 kg -
Description Item Terminal clamps Pole terminals, gold-plated Minimum amplifier output power recommended 20 W -
Description Item Suitable for AV receiver Yes Maximum cable diameter 2.5 mm Cabinet material Aluminum Cabinet surface Brushed Net internal volume 3.8 L Tweeter (number per enclosure) 1 Tweeter (diameter) 19 mm Tweeter (material) Textile Midrange driver (number per enclosure) 2 Midrange driver (diameter) 80 mm Midrange driver (material) Paper Woofer (number per enclosure) 2 Woofer (diameter) 80 mm Woofer (material) Paper Continuous power handling (IEC - Long Term) 70 W Sensitivity (2.83 V / 1 m) 86 dB Frequency range 135 - 20000 Hz Peak power capacity (IEC - Short Term) 100 W Maximum sound pressure level 101 dB/1m Impedance 4 - 8 Ohm Crossover frequency to Woofer (recommended) 120 Hz Acoustic principle 3-way-system Enclosure type Closed Crossover frequency internal switch 450 / 2800 Hz

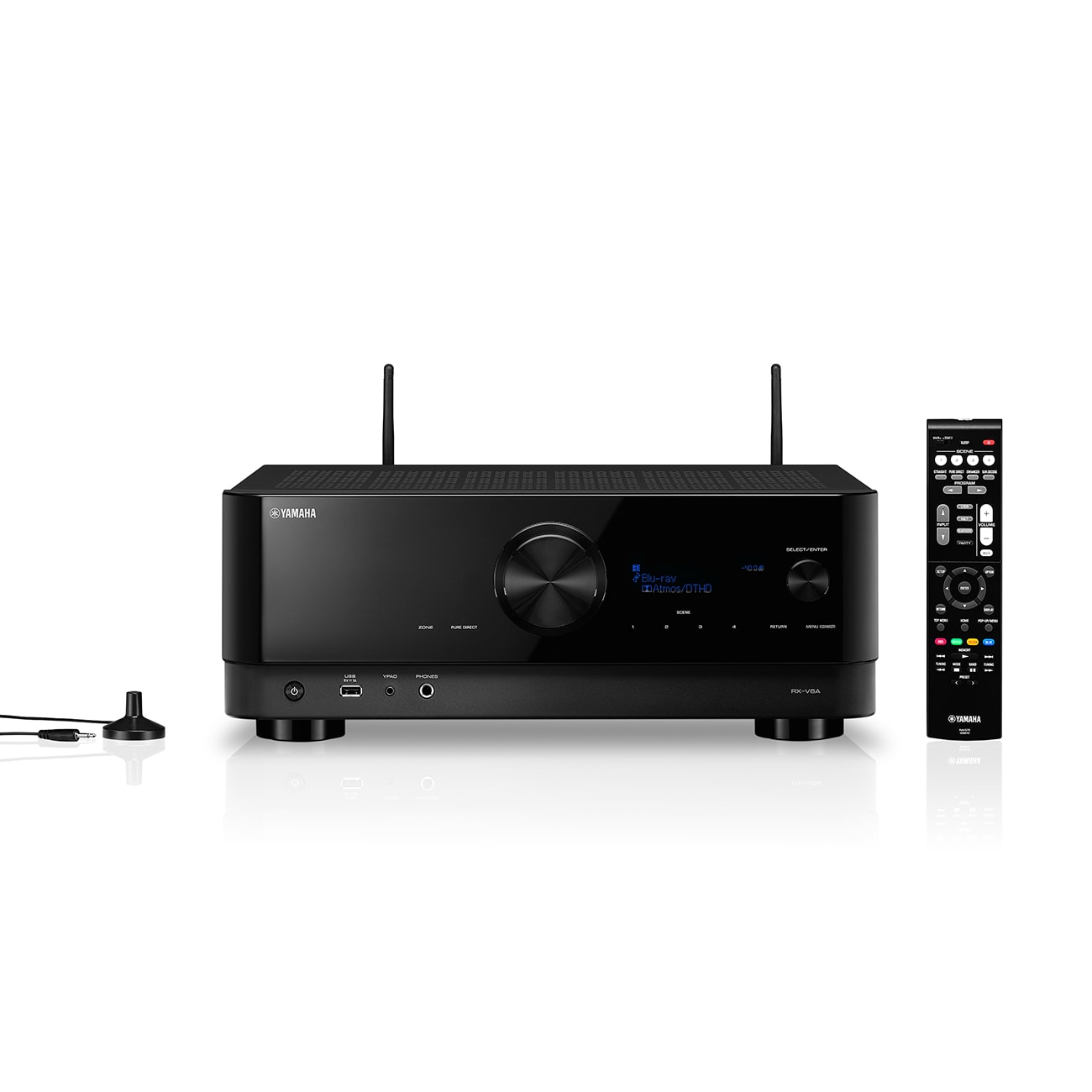

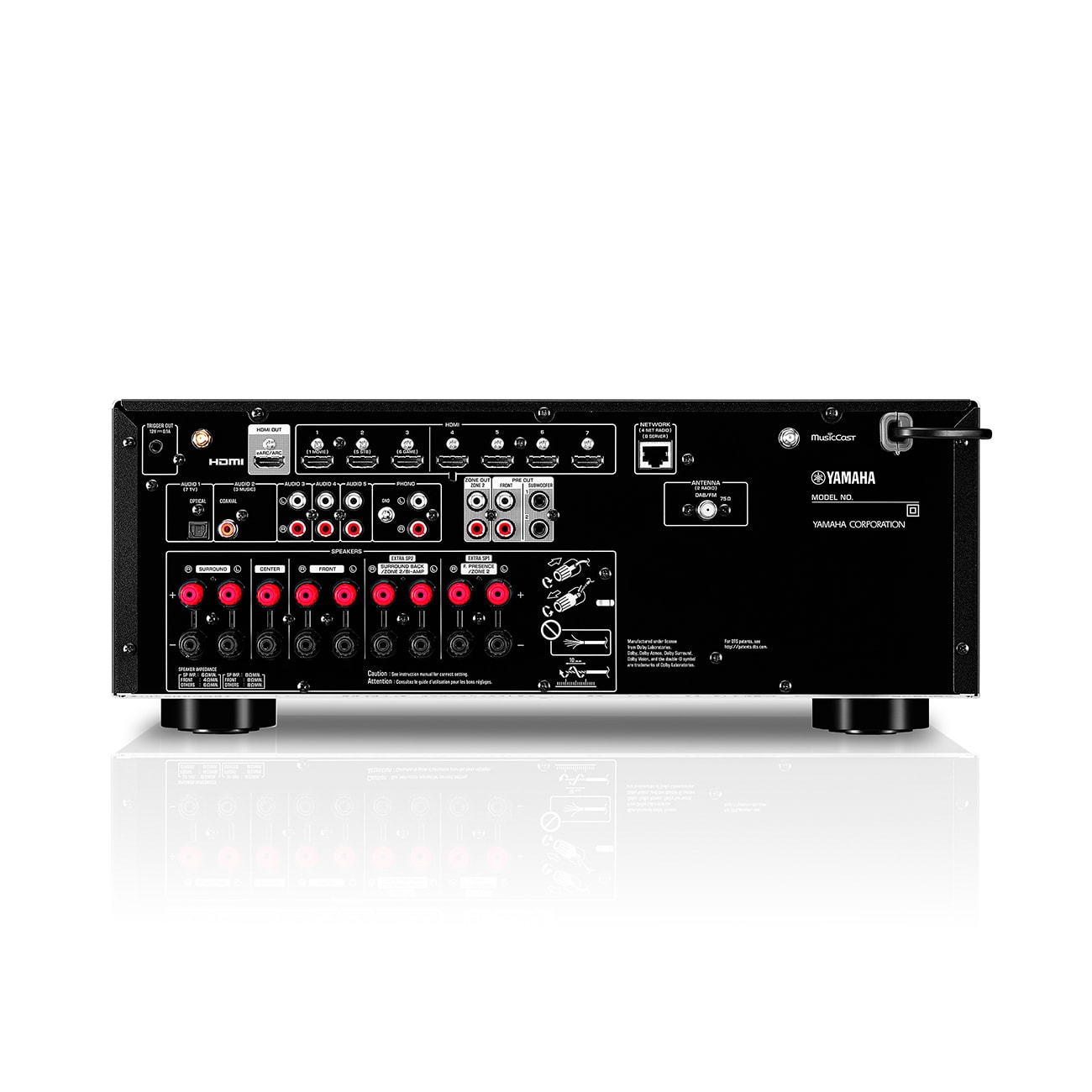

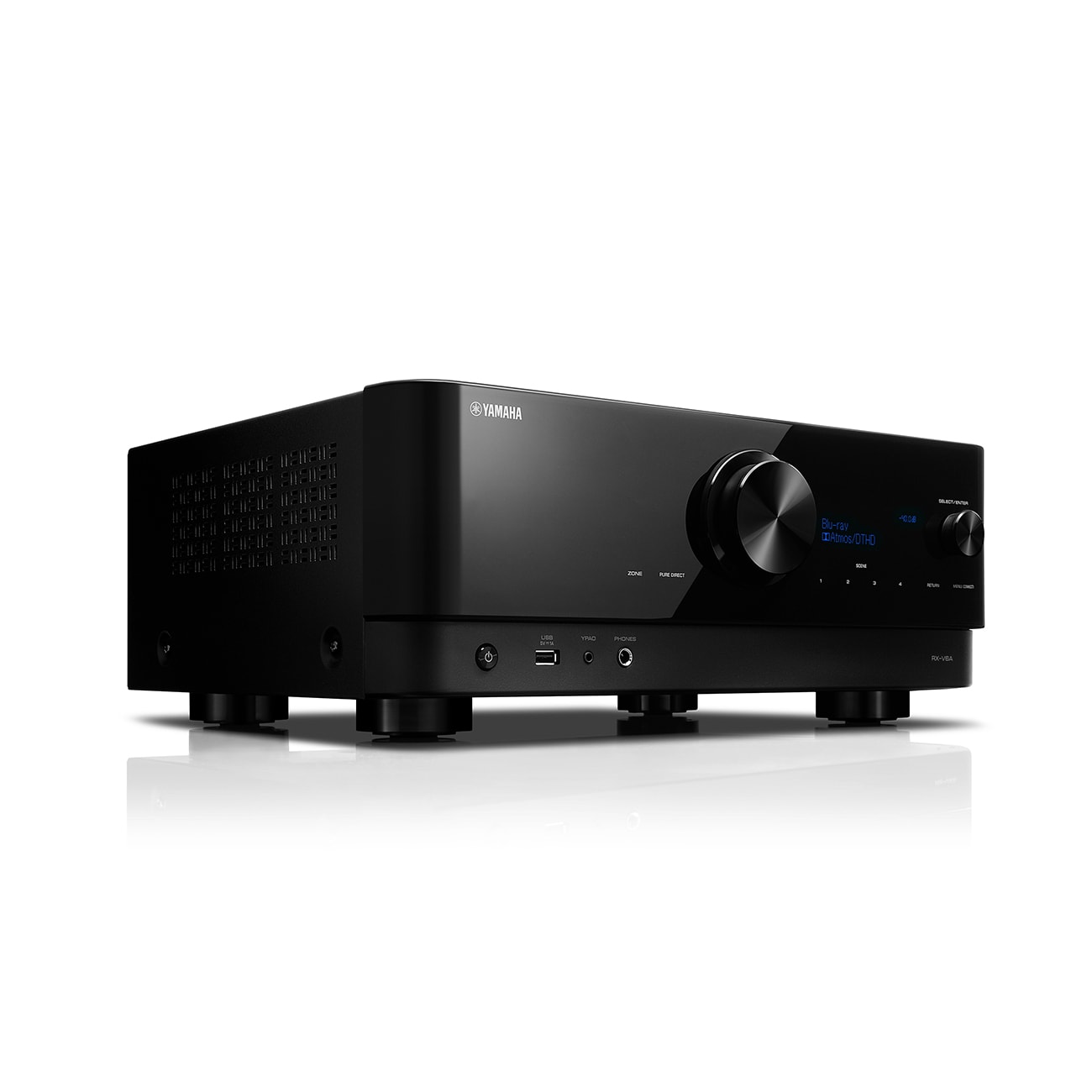

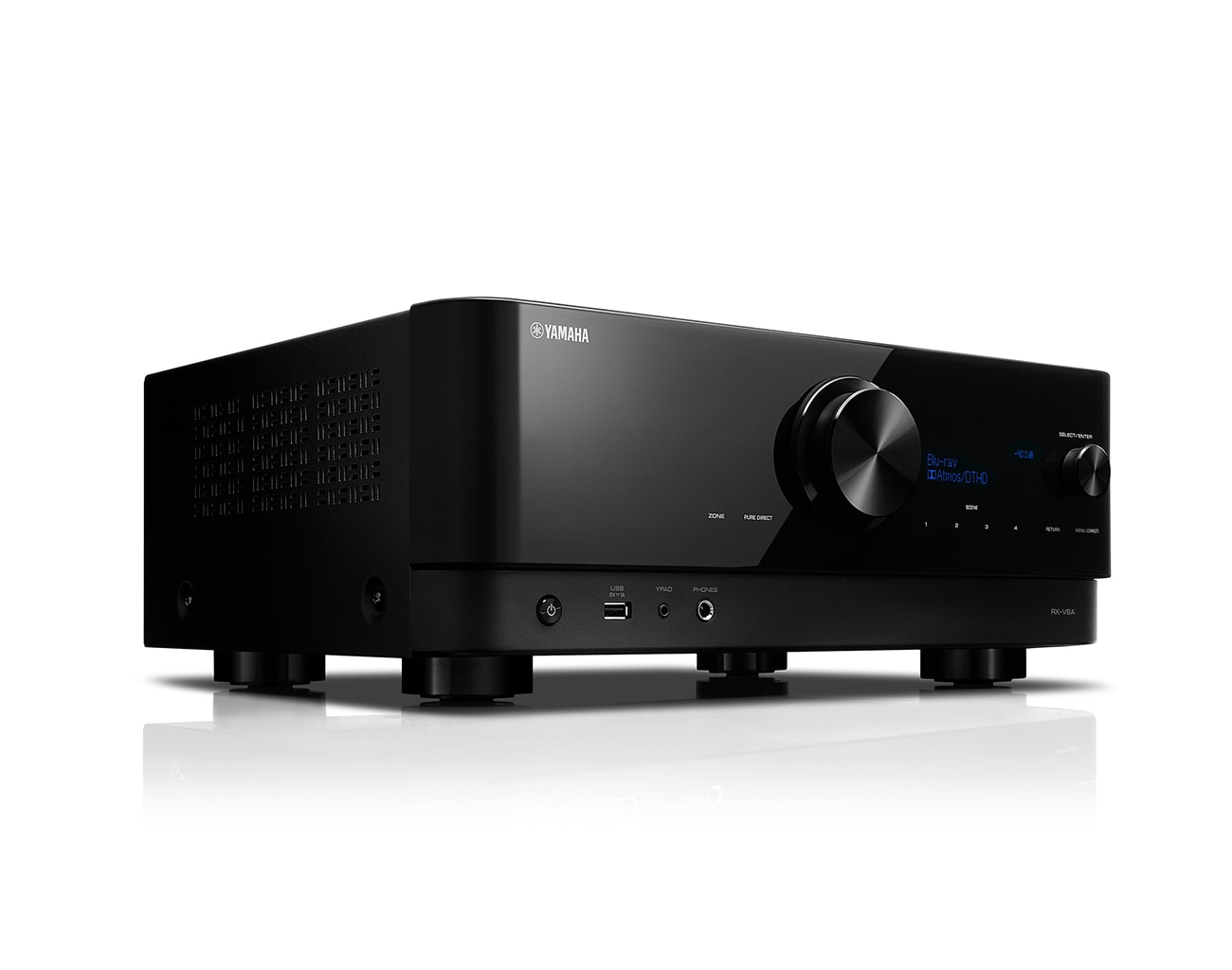

Yamaha RX-V6A
High-end 7.2 or 5.2.2 AV receiver with 125 Watts of output performance per channel (8 ohms, 0.9% THD). Amplifier with high slew rate
-
Description Item Width 43.5 cm Height 17.1 cm Depth 37.7 cm Weight 9.8 kg -
Description Item Headphone output 6,3mm 1 AUX Yes AirPlay 2 Yes Bluetooth Yes LAN Yes Wifi Yes HDMI 3D ARC CEC Yes Video outputs - HDMI 1 Video inputs- HDMI 7 Digital outputs optical 1 HDMI ARC CEC Yes -
Description Item Dolby Atmos Yes Dolby TrueHD Yes Dolby Vision Yes DTS-HD Master Audio Yes DTS:X Yes HDR10+ Yes -
Description Item DAB+ Yes FM Yes -
Description Item Amazon Music Yes Deezer Yes napster Yes Spotify Yes TIDAL Yes
- Data Sheet [PDF]

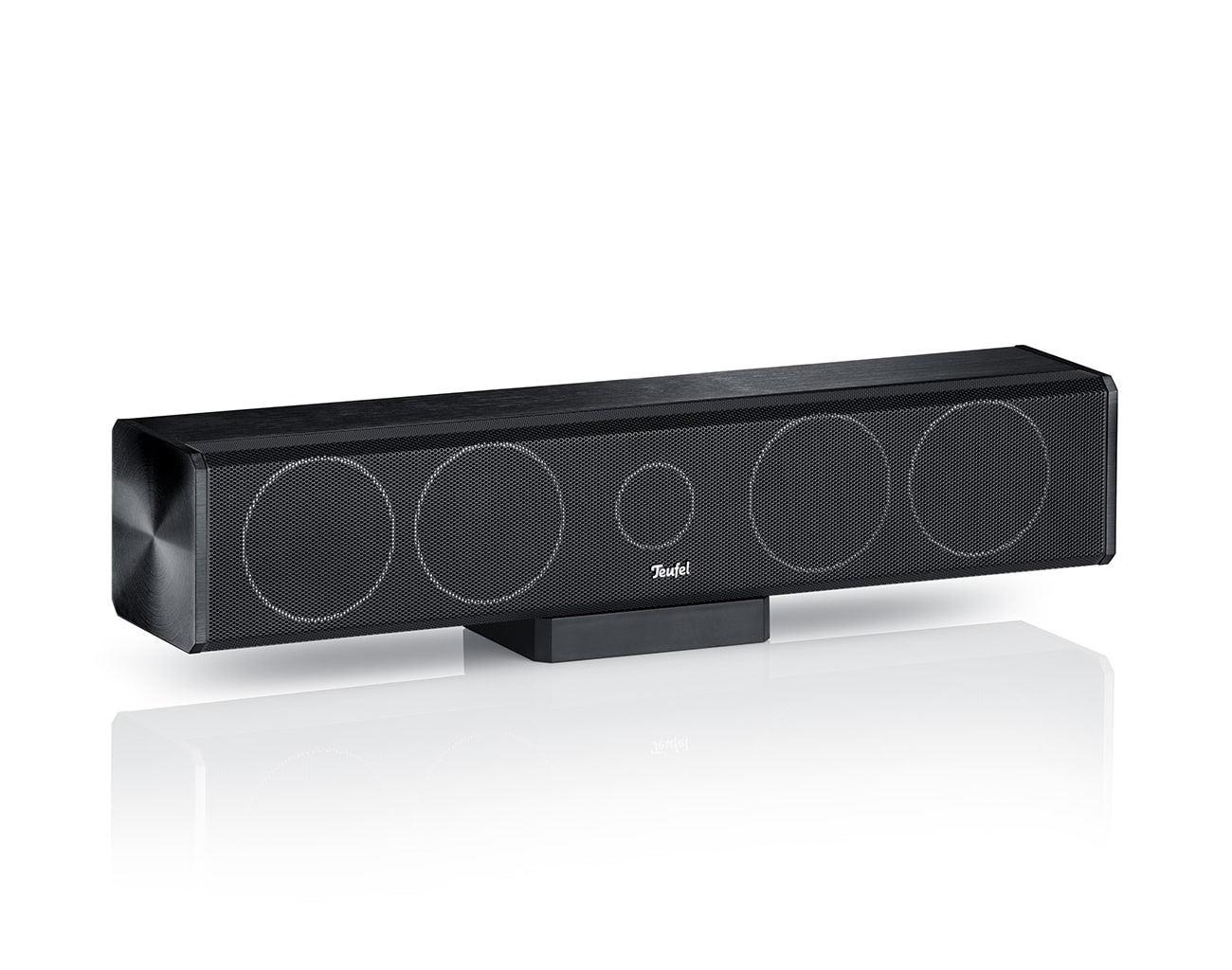

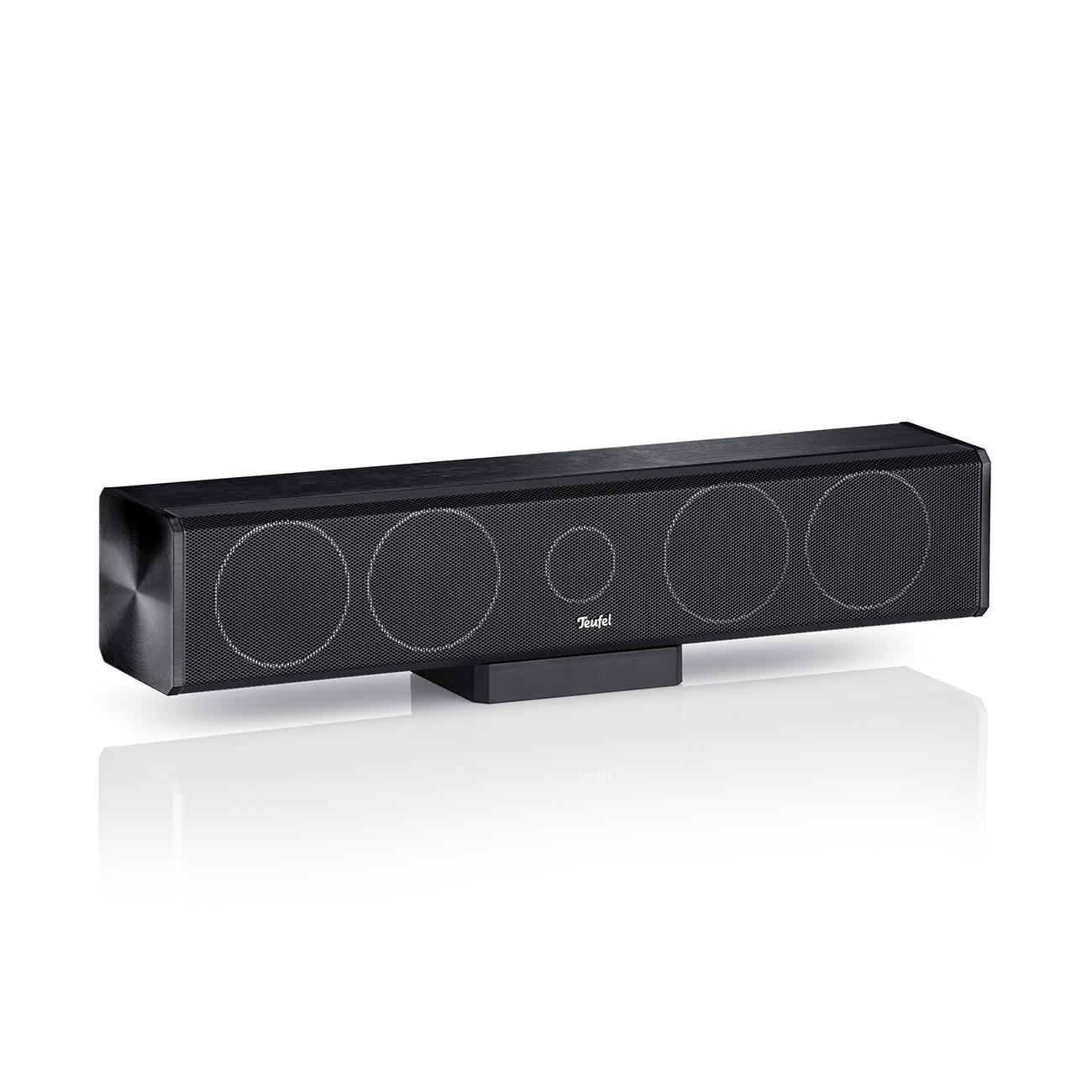

Centre Speaker L 430 C
The L 430 C is a high-performance hi-fi centre speaker made from aluminium that comes with a holder. Its sound is identical to that produced by the L 430 FR and the L 430 FCR.
-
Description Item Width 46.5 cm Height 9.1 cm Depth 9.6 cm Weight 2.5 kg -
Description Item Terminal clamps Pole terminals, gold-plated Minimum amplifier output power recommended 20 W -
Description Item Suitable for AV receiver Yes Banana plug compatible Yes Maximum cable diameter 2.5 mm Cabinet material Aluminum Cabinet surface Brushed Net internal volume 3.8 L Keyhole plate mounted Yes Wall mounting brackets Yes Tweeter (number per enclosure) 1 Tweeter (diameter) 19 mm Tweeter (material) Textile Midrange driver (number per enclosure) 4 Midrange driver (diameter) 80 mm Midrange driver (material) Paper Continuous power handling (IEC - Long Term) 70 W Sensitivity (2.83 V / 1 m) 86 dB Frequency range 135 - 20000 Hz Peak power capacity (IEC - Short Term) 100 W Maximum sound pressure level 101 dB/1m Impedance 4 - 8 Ohm Crossover frequency to Woofer (recommended) 120 Hz Acoustic principle 3-way-system Enclosure type Closed Crossover frequency internal switch 450 / 28800 Hz

Subwoofer-Cable 2.5m - C3525W
-
Description Item Cable length 2.5 m

30m Speaker Cable 2.5mm² - C2530S
-
Description Item Cable length 30 m
-
