Theater 500 "2.0>5.1 Surround expansion set"

€100
€500
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Highlights

    Key advantages at a glance

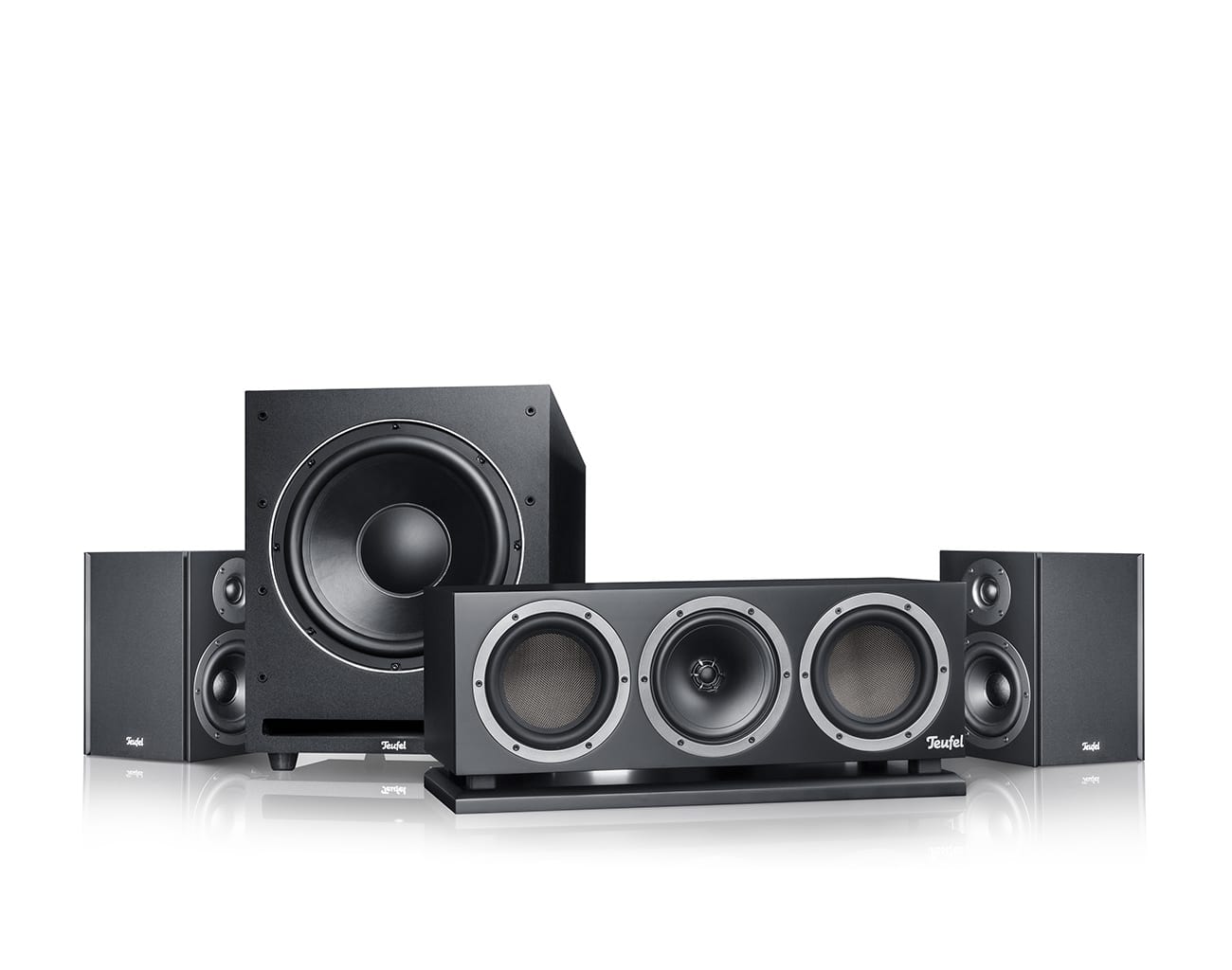

    • 5.1 expansion set for the Theater 500/Theater 500S
    • For true Surround Sound
    • Contains a center, subwoofer and rear speakers
    • Components: 2 x T 500 D 16 dipoles, 1 x T 500 C 16 center, 1 x S 6000 SW subwoofer
    • Suitable for use with midrange to high-end AV receivers
    • Powerful S 6000 SW subwoofer with 300mm woofer and 250-Watt power for deep, powerful bass, can be paired wirelessly

    Features

    All technologies at a glance

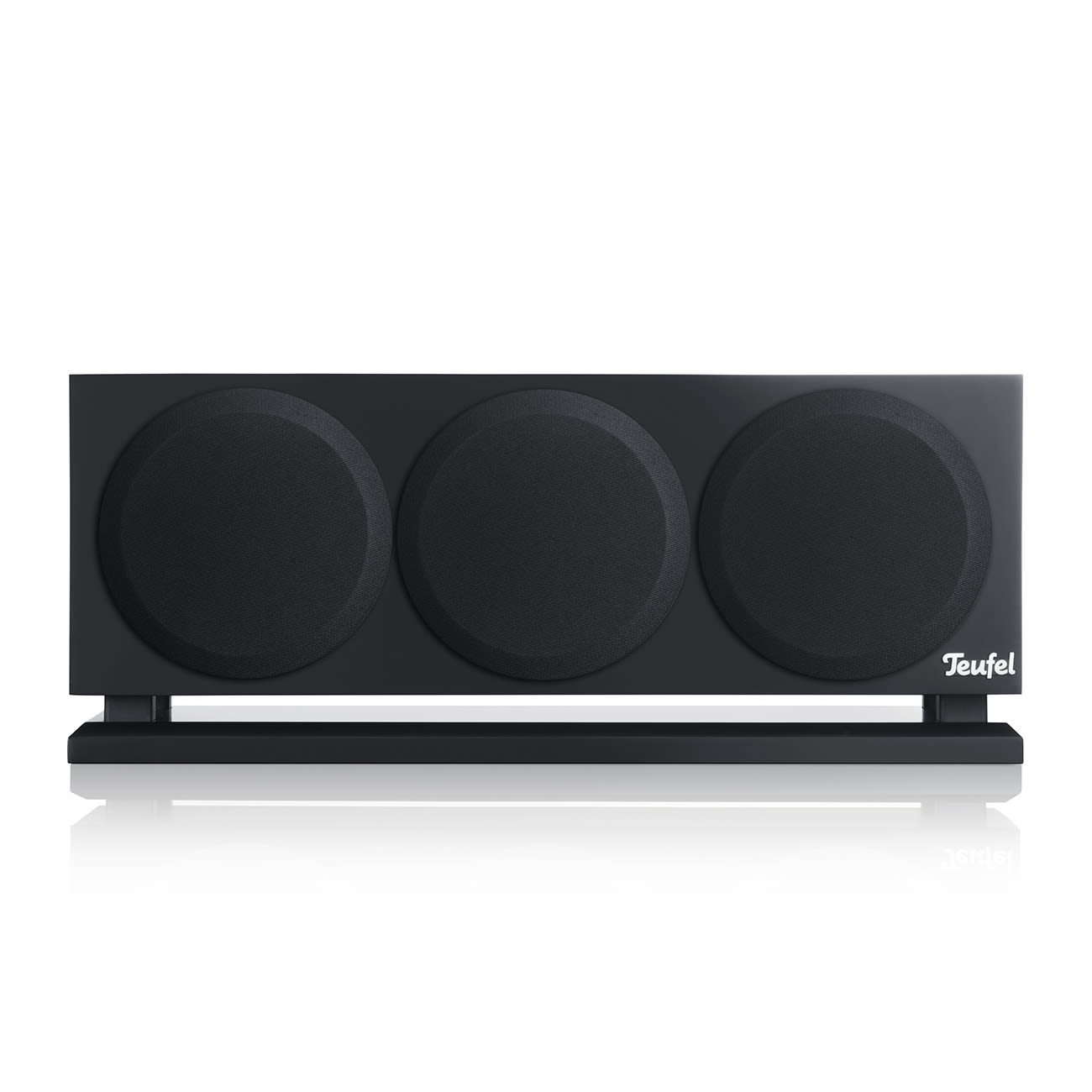

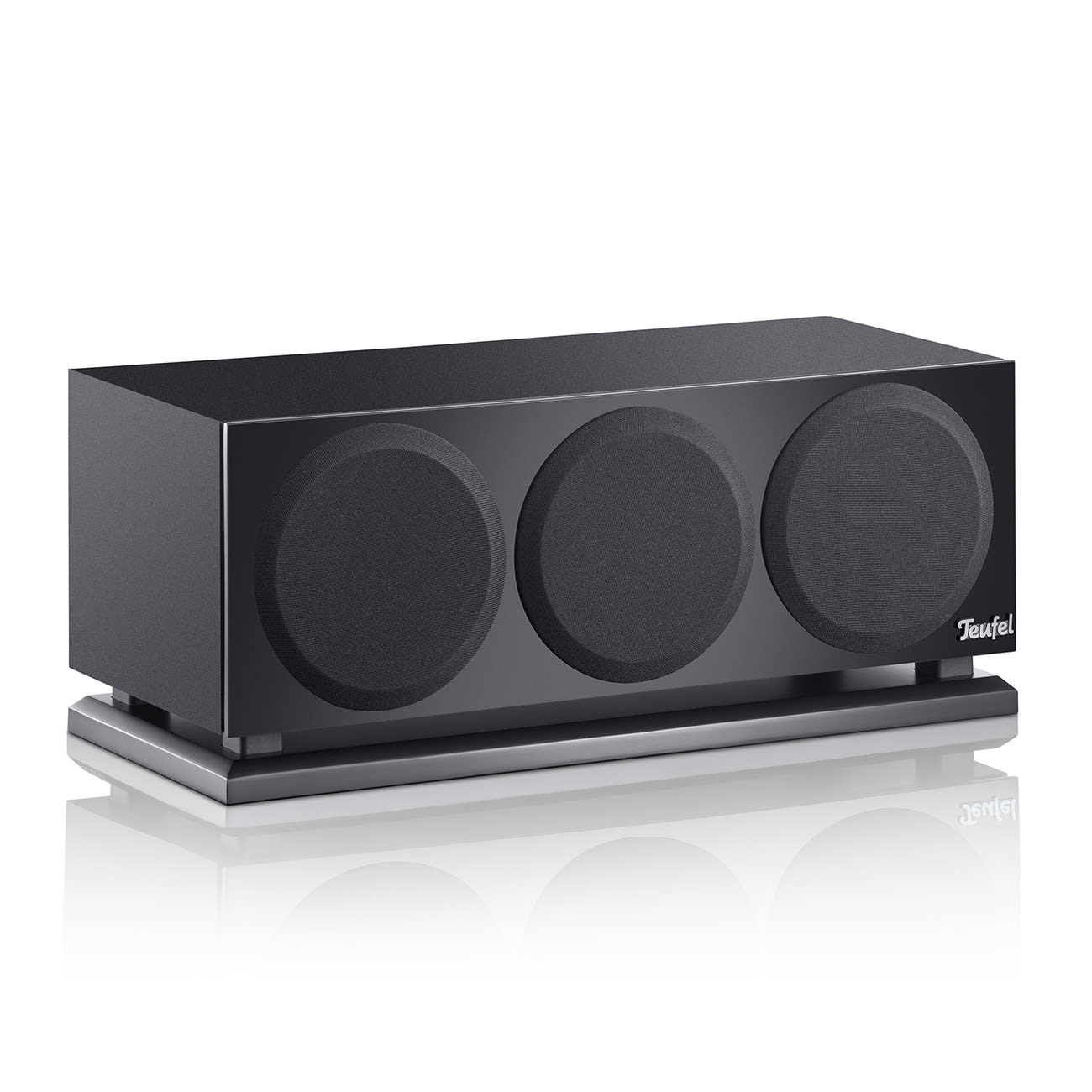

    Center with dual squawkers

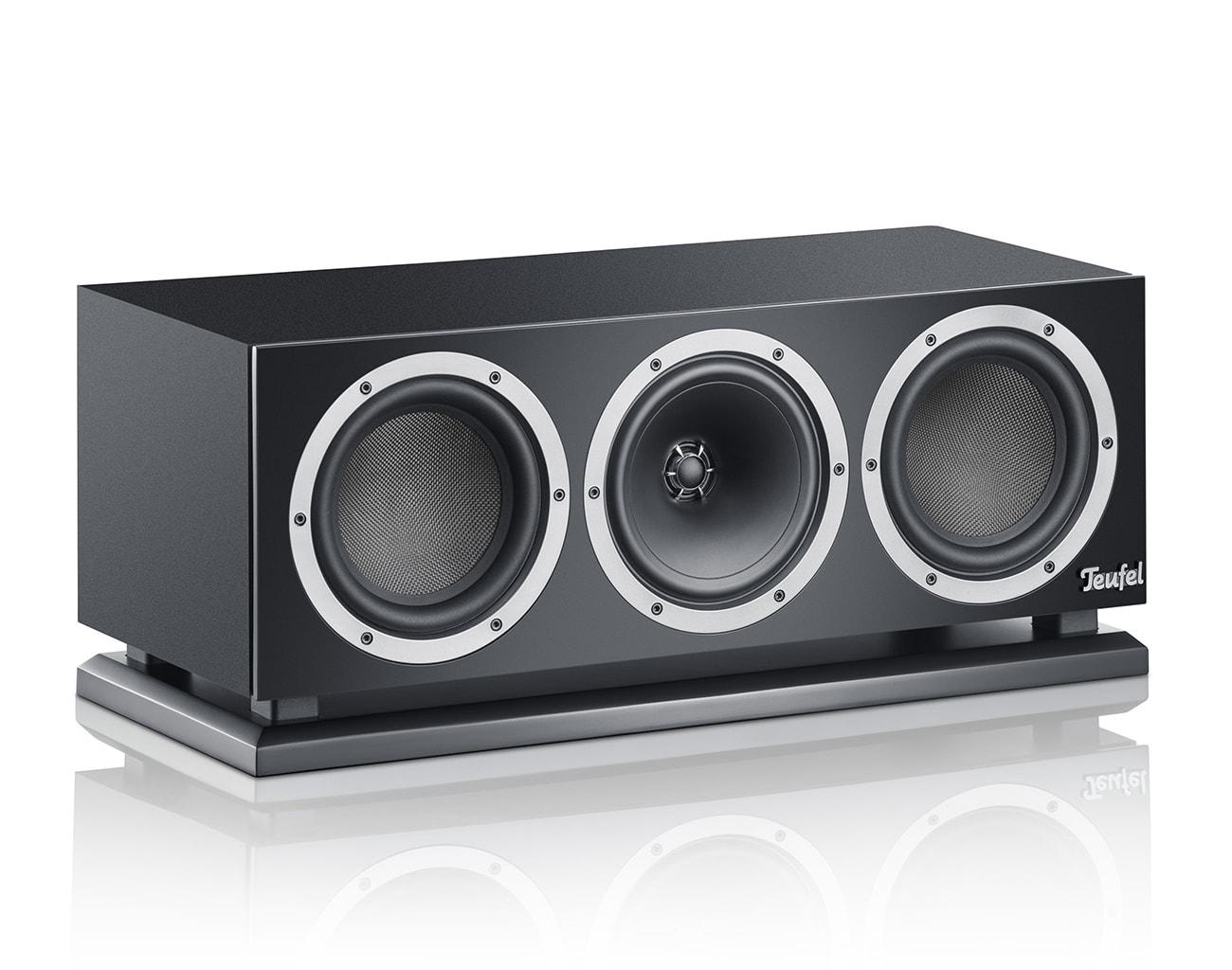

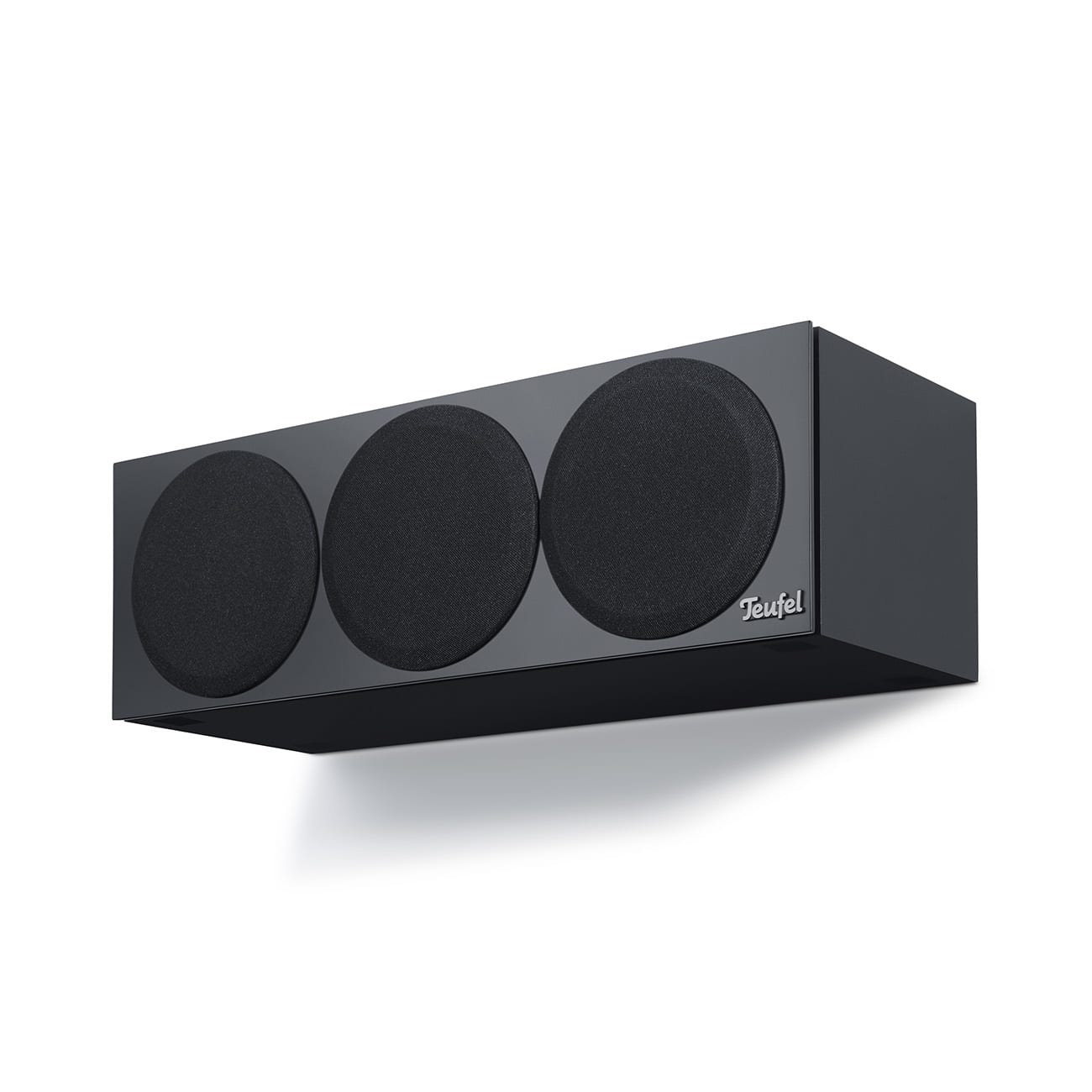

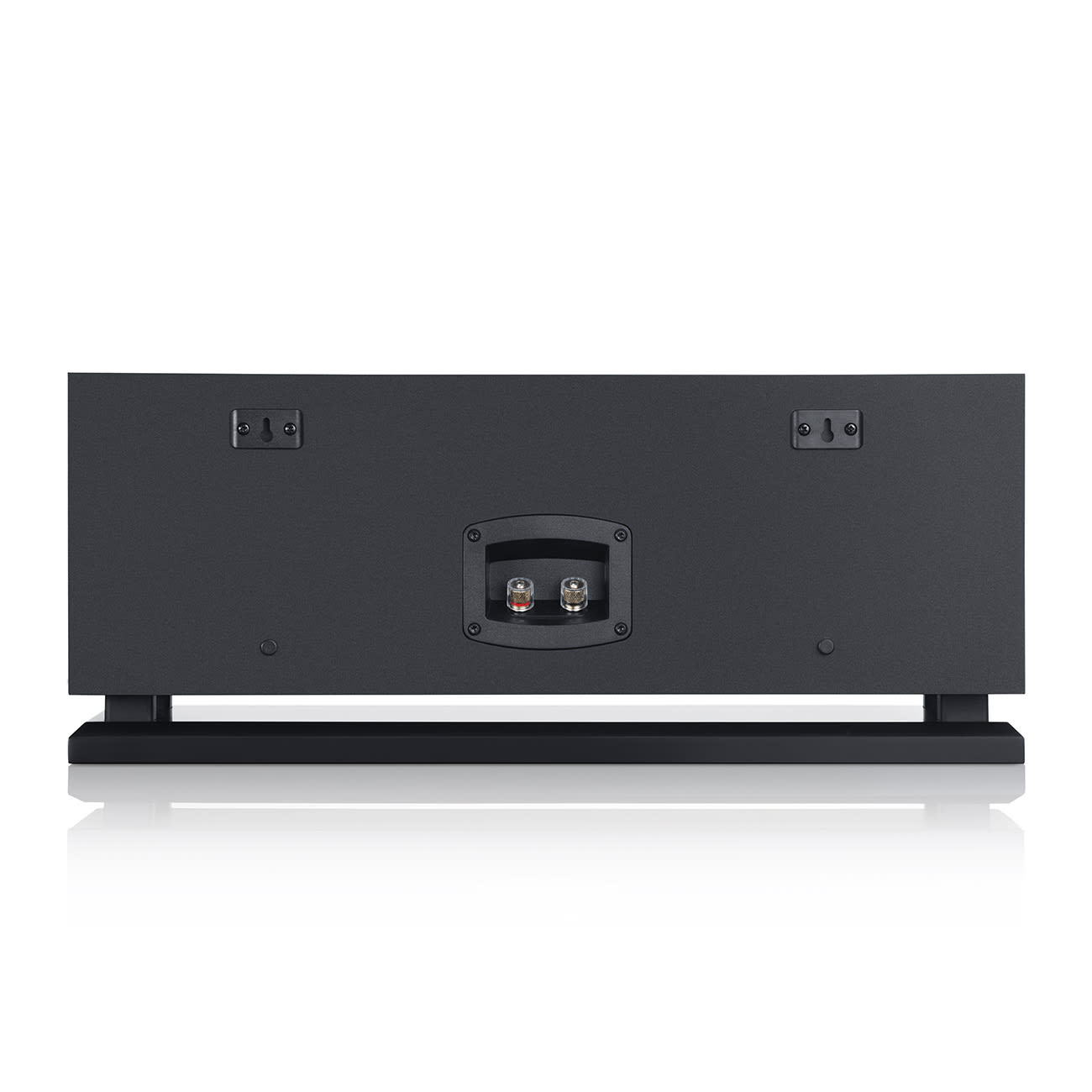

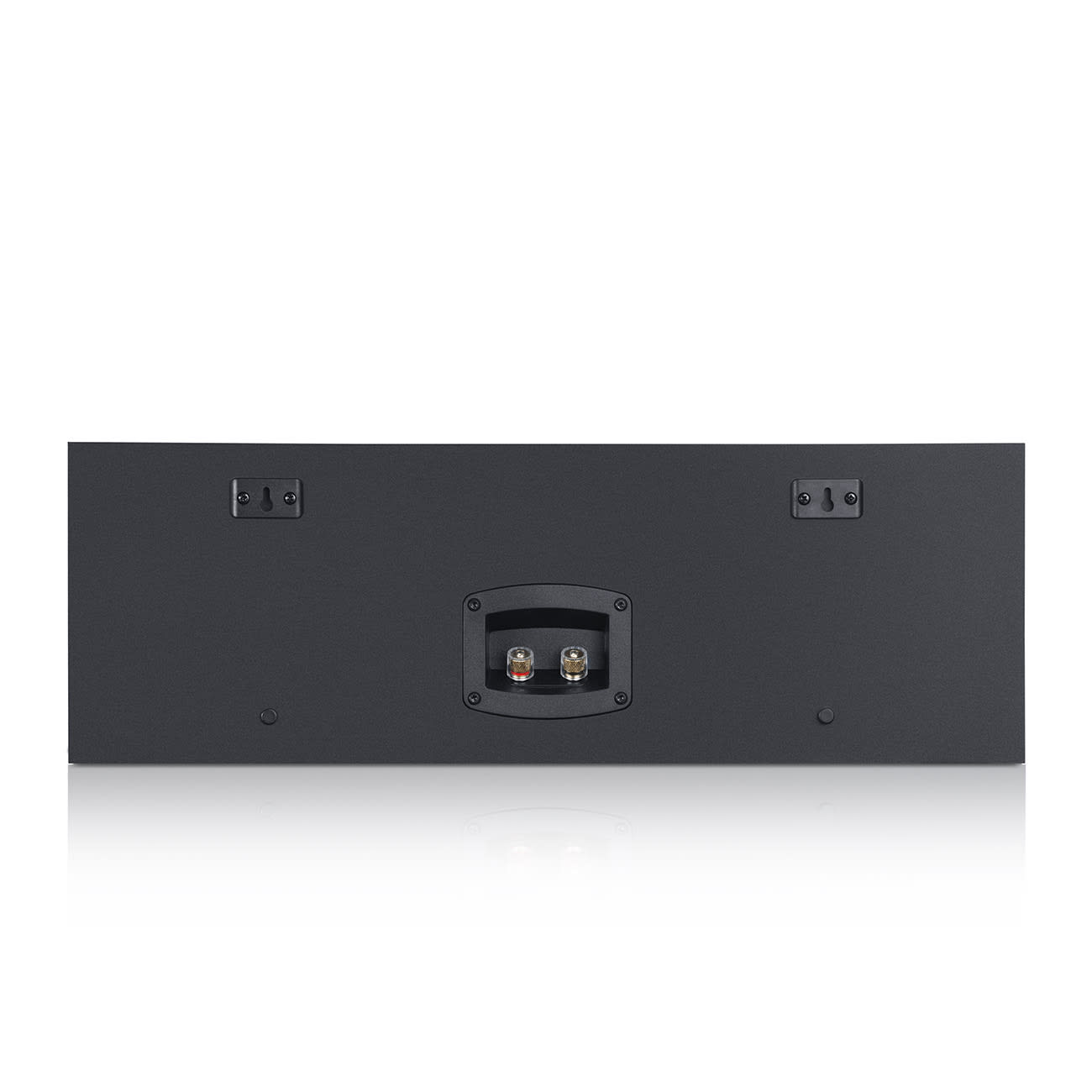

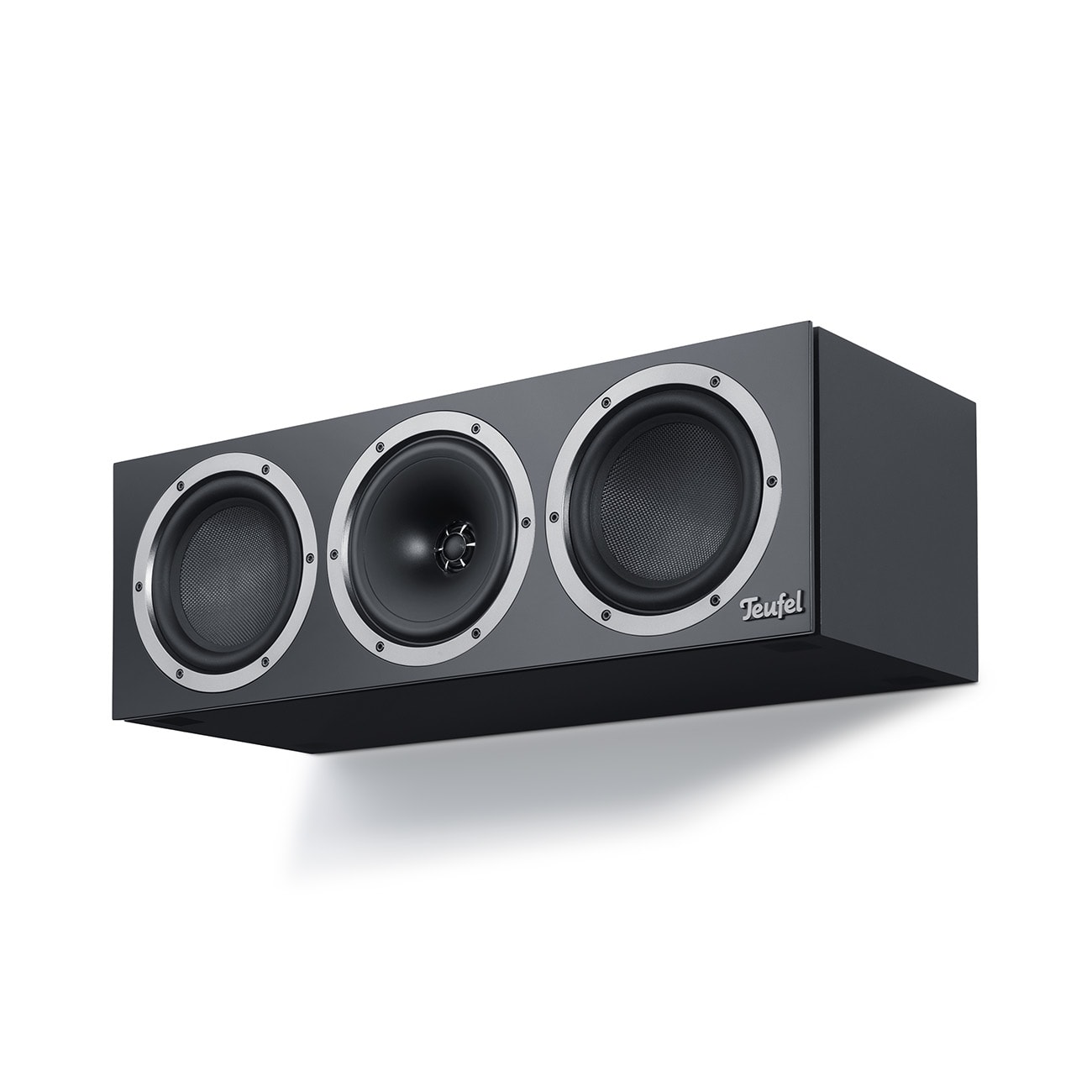

    The flat, compact T 500 C 16 center speaker offers impressively powerful playback. Use the integrated keyhole brackets to wall mount the speaker directly under your flatscreen for perfect home theater sound.

    The T 500 C 16 can also fit easily on a shelf. The included base plate can be removed for wall mounting.
    Acoustically, the center offers exceptional performance thanks to:

    • Linear frequency response for crisp, intelligible dialogue
    • High performance drivers for minimal distortion even at high volumes

    Dipole speakers for that authentic movie theater feel

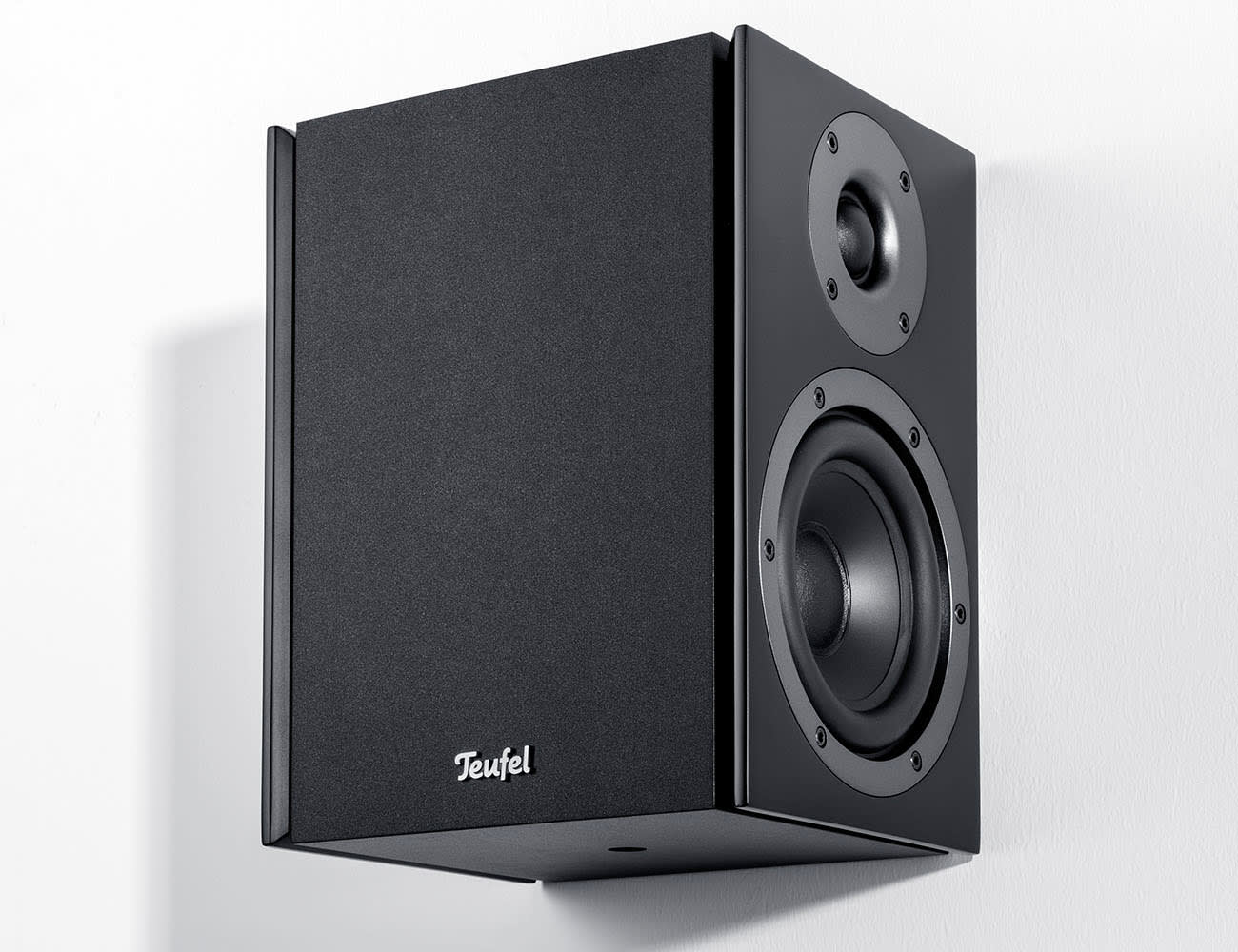

    Dipoles rear speakers simulate the sound image of a movie theater, where the surround channels are each produced by multiple speakers. The non-directional sound radiation of the dipoles to the front and rear gives the sound an indisputably authentic feeling. Two woofers and tweeters ensure tight sound across the entire frequency spectrum down to the subwoofer.

    • Speaker balance is sonically identical to the front speakers
    • Can be configured as dipole or direct-radiating (monopole) speakers (for gaming)

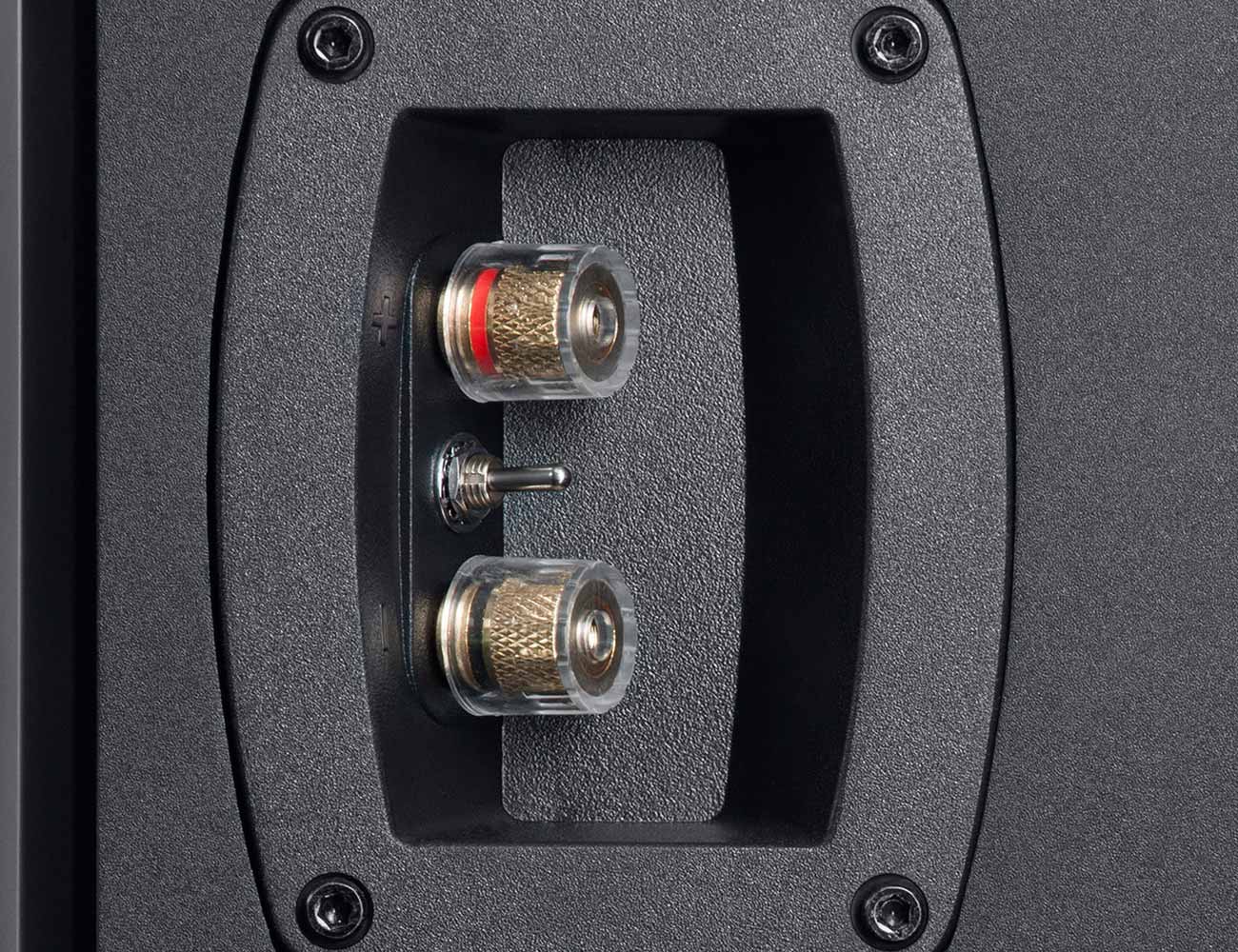

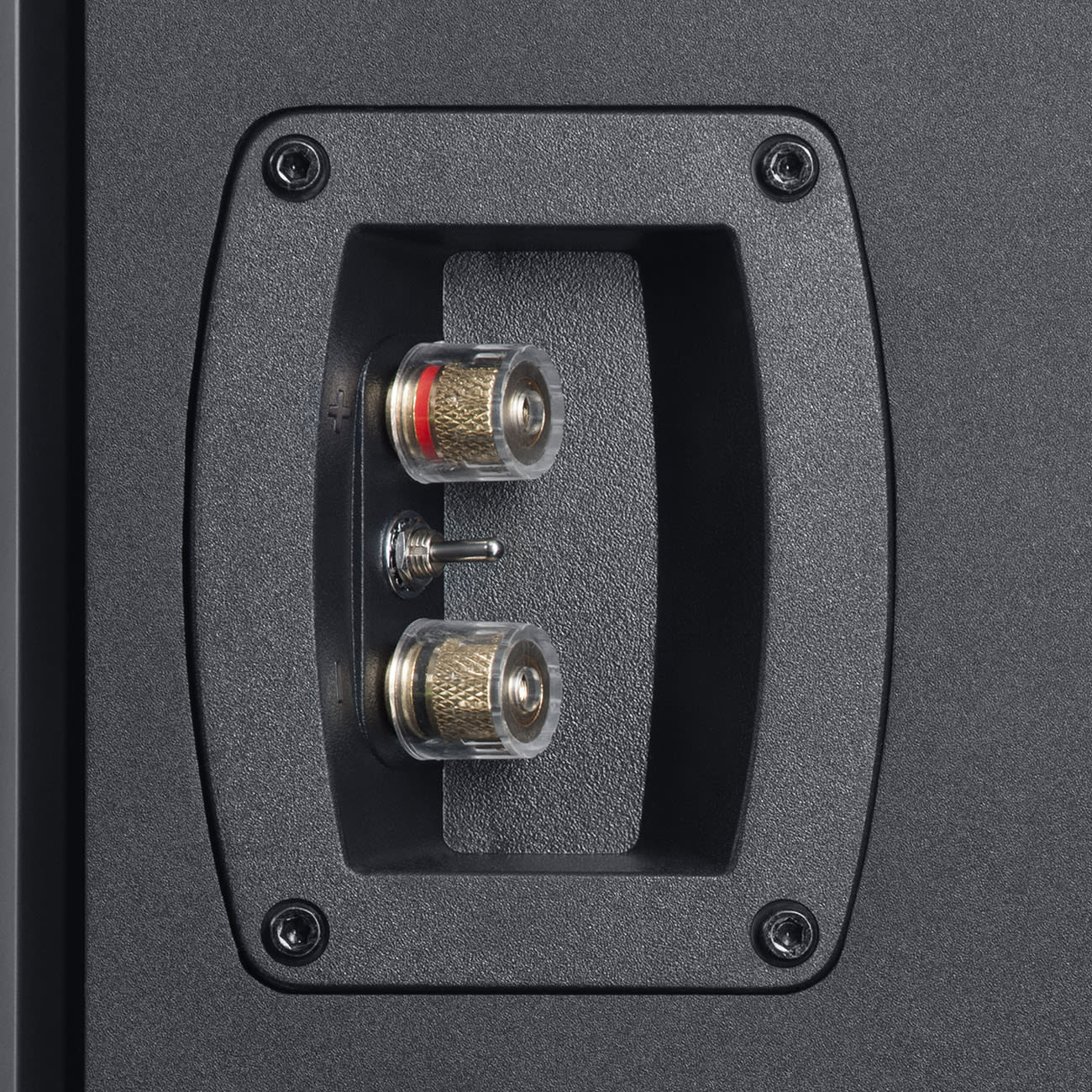

    • Stable, gold-plated inputs (compatible with banana plugs) provide optimal connection for cables up to 4 mm²

    Show me more

    Specifications

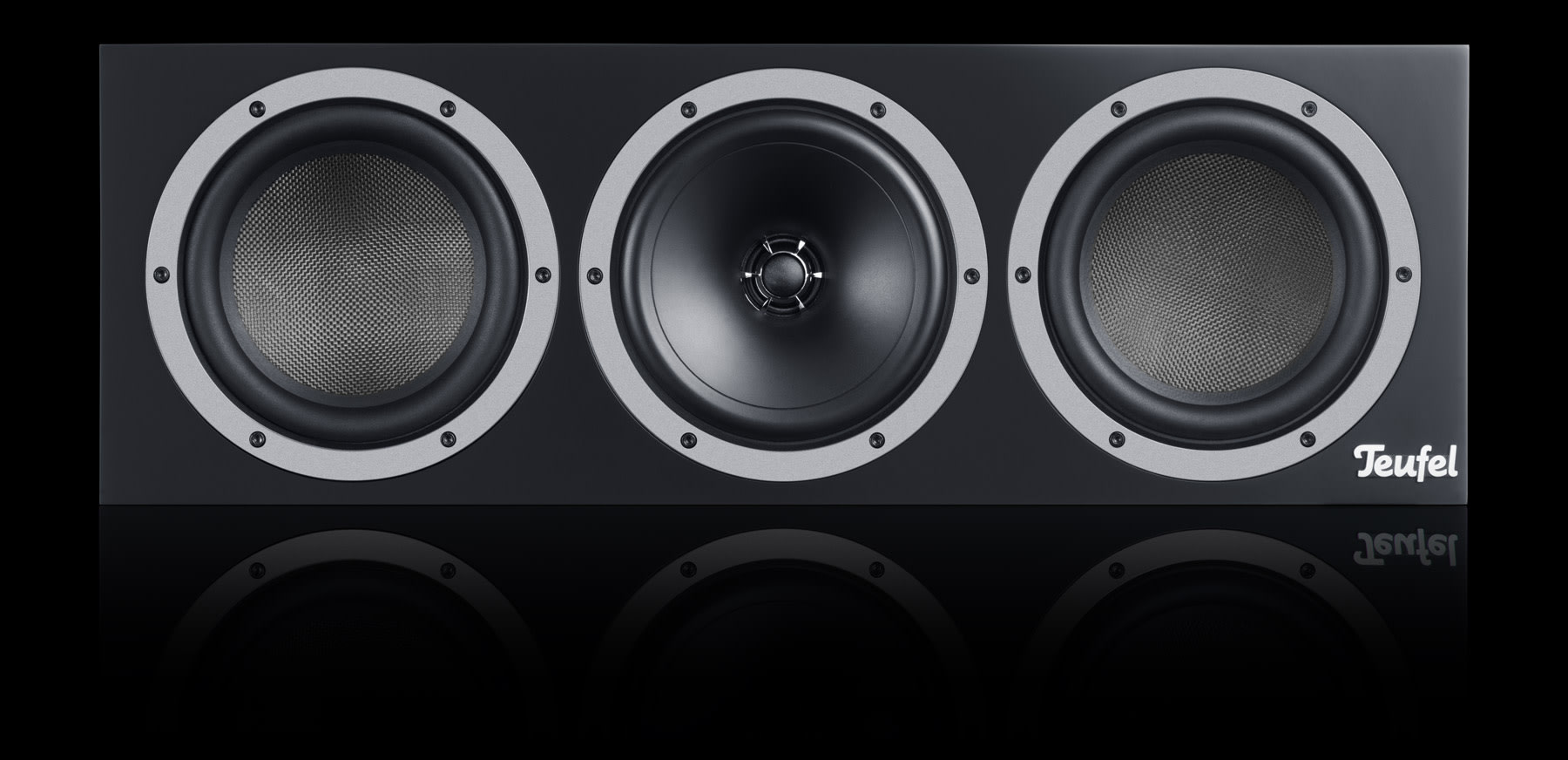

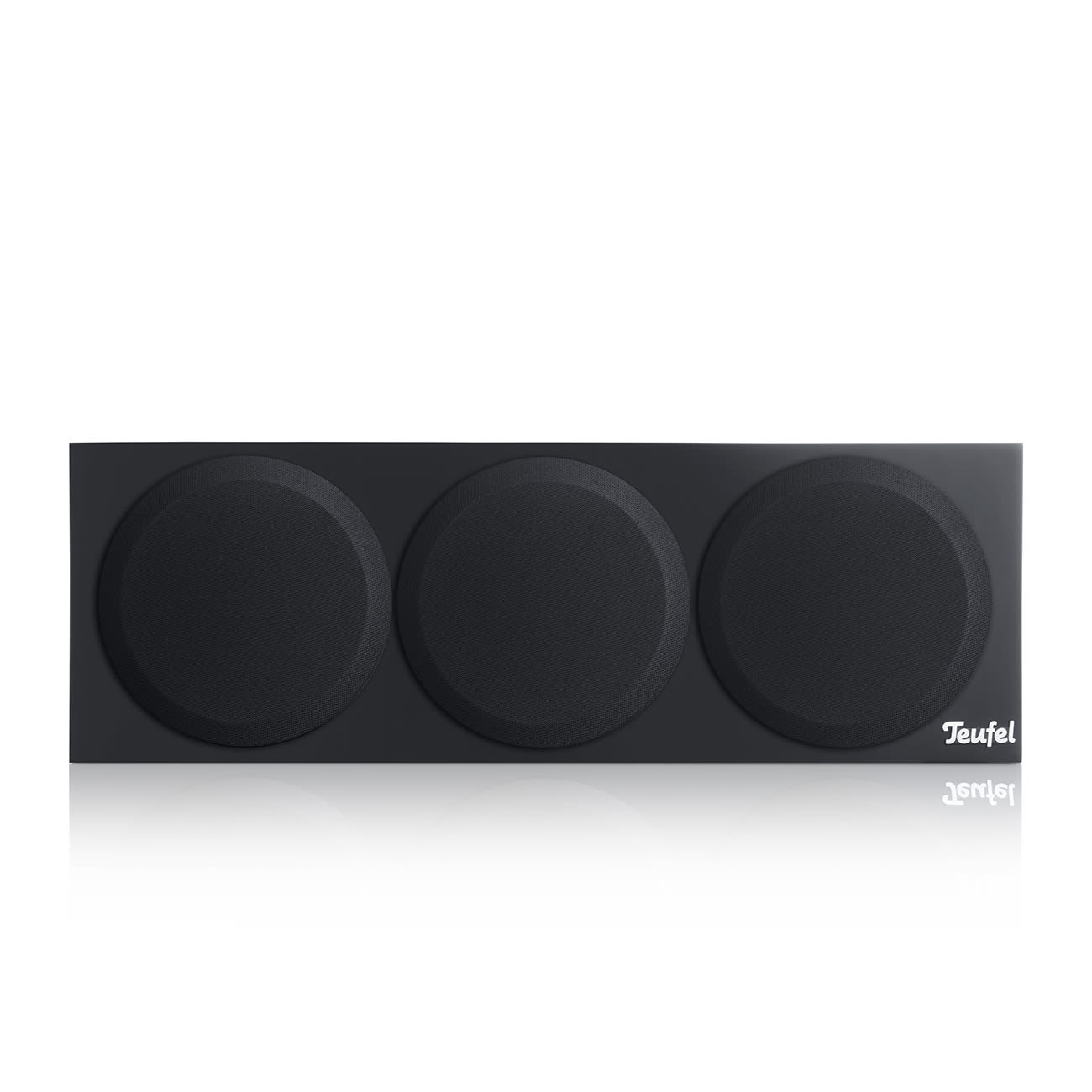

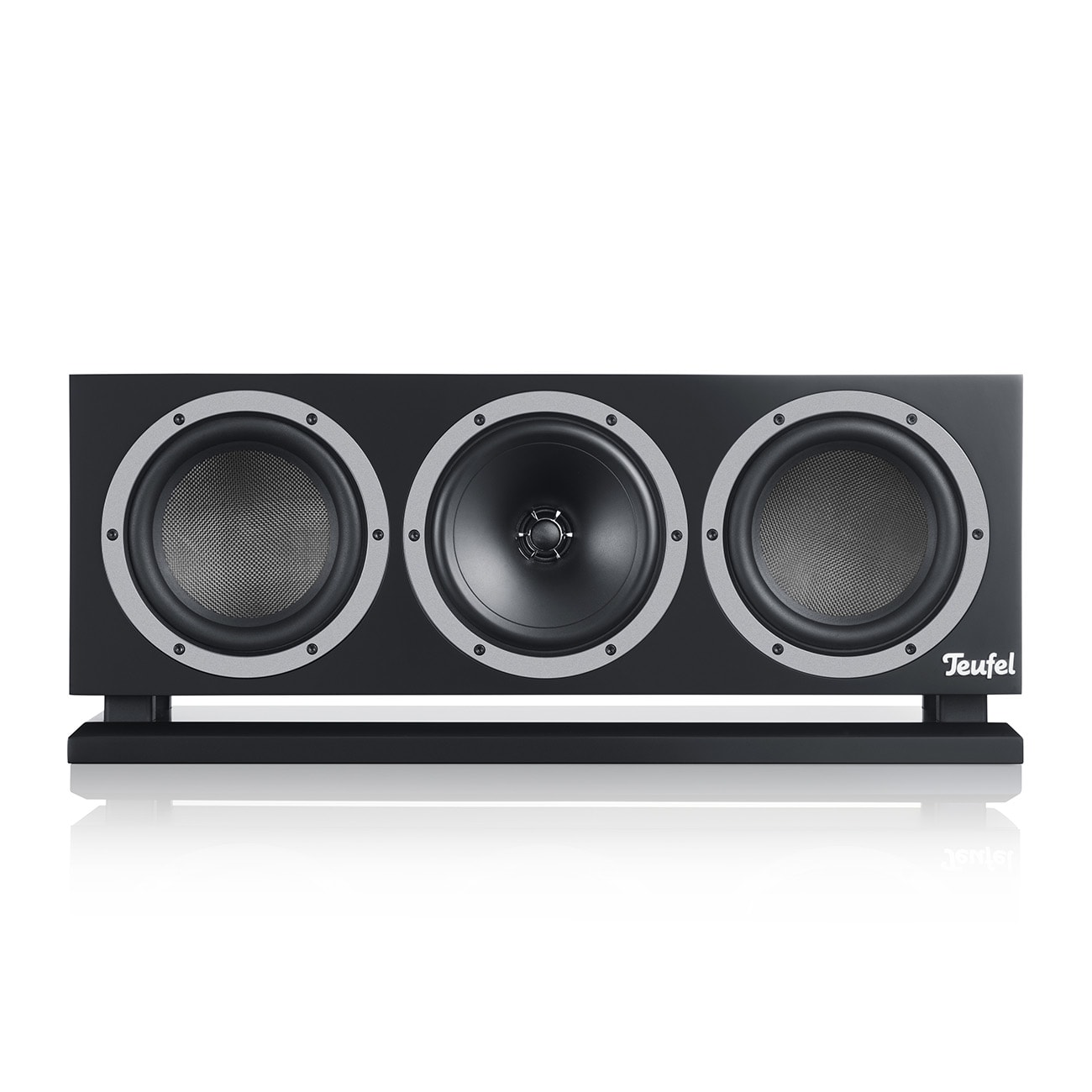

    Centre Speaker T 500 C 16

    High-end center speaker

    • Description Item
      Width 59.5 cm
      Height 24.3 cm
      Depth 22.8 cm
      Weight 12.5 kg
    • Description Item
      High Level speaker inputs 1
      Terminal clamps Gold-plated screw terminals
      Minimum amplifier output power recommended 50 W
    • Description Item
      Suitable for AV receiver Yes
      Banana plug compatible Yes
      Maximum cable diameter 4 mm
      Diameter of the stand screw threads 6 mm
      Removable front cover Yes
      Cabinet material MDF
      Cabinet surface MDF/Lacquer
      Net internal volume 14 L
      Keyhole plate mounted Yes
      Wall mounting brackets Yes

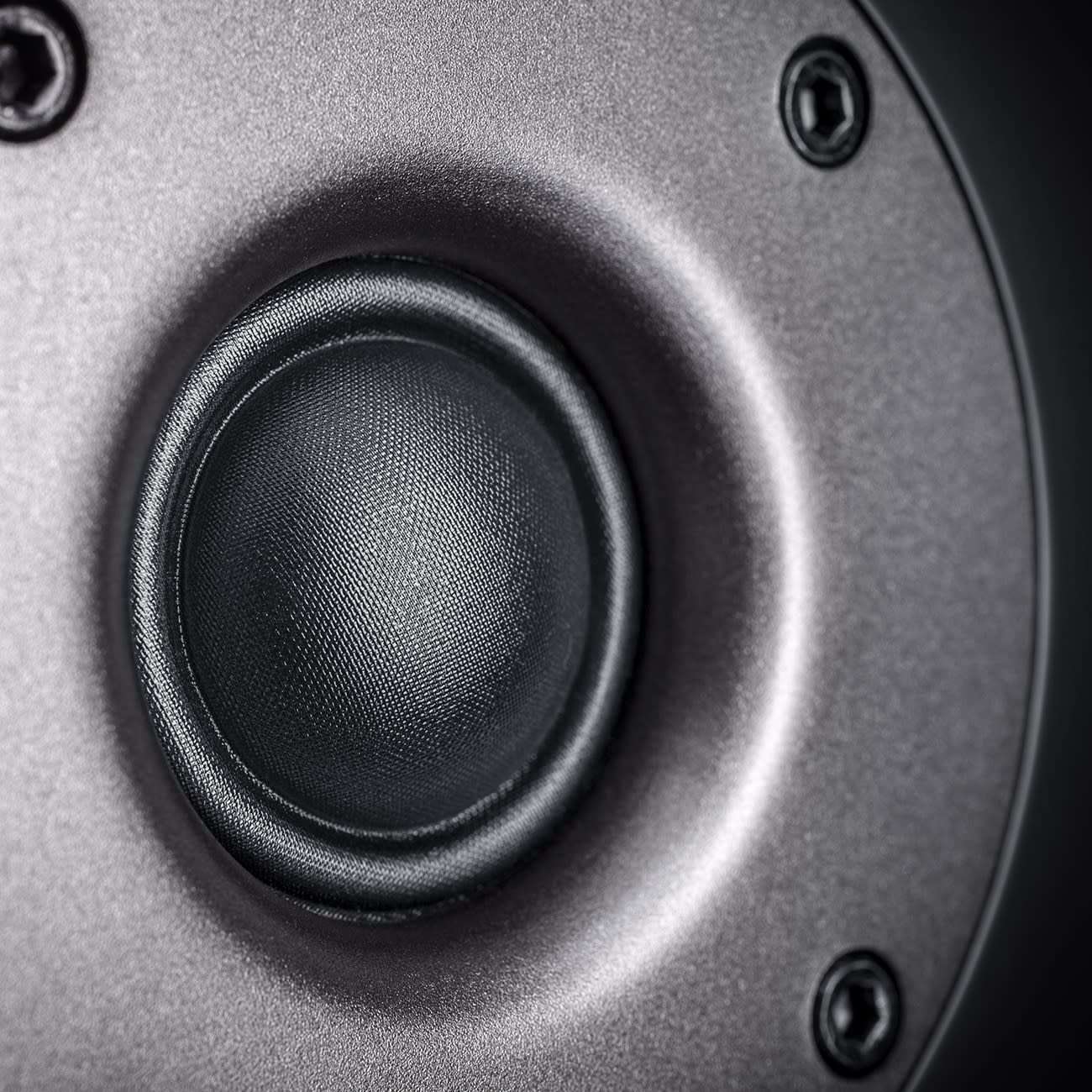

      Tweeter (number per enclosure) 1
      Tweeter (diameter) 25 mm
      Tweeter (material) Textile

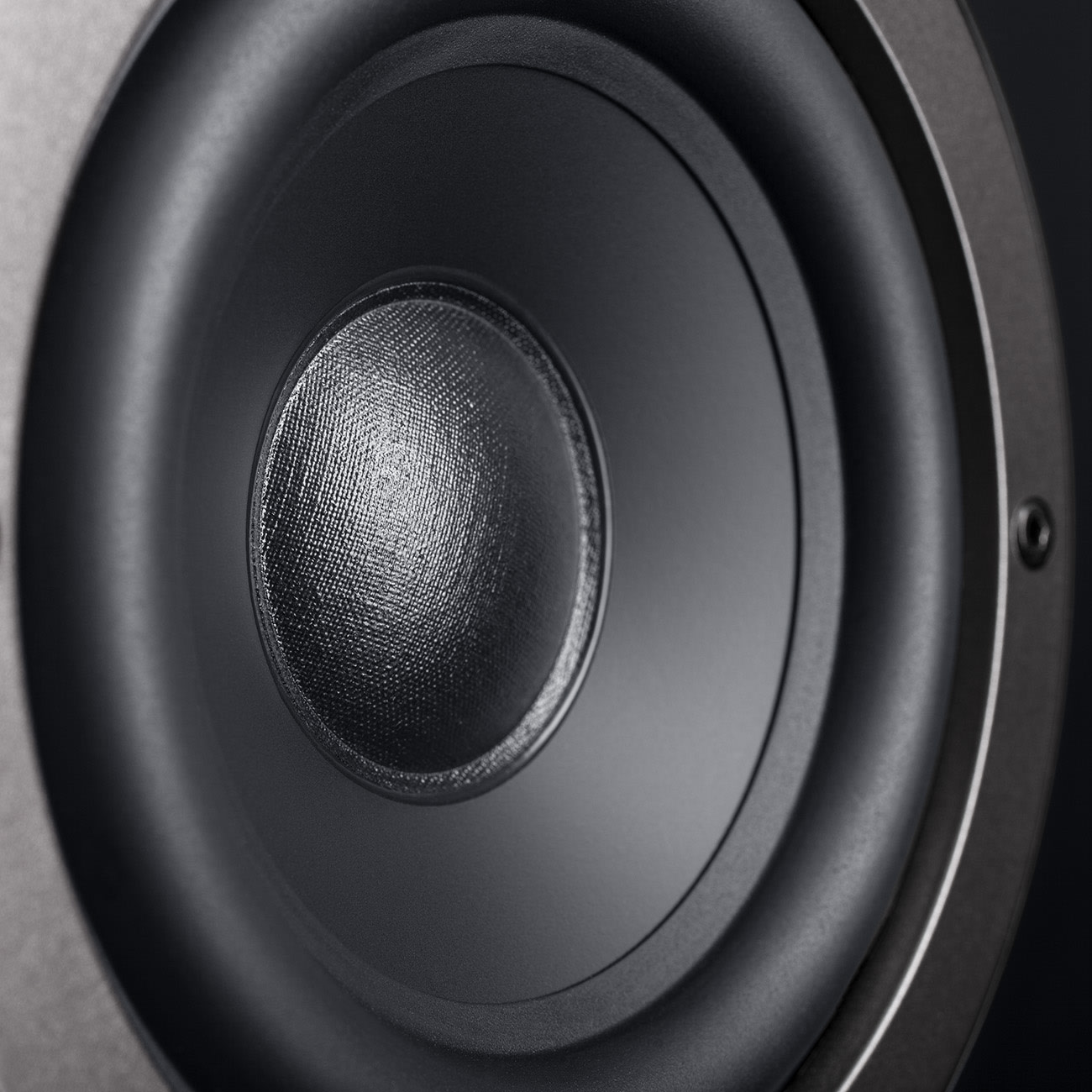

      Bass/Midrange driver (number per enclosure) 2
      Bass/Midrange driver (diameter) 160 mm
      Bass/Midrange driver (material) Kevlar
      Continuous power handling (IEC - Long Term) 140 W
      Sensitivity (2.83 V / 1 m) 88 dB
      Frequency range 69 - 21000 Hz
      Peak power capacity (IEC - Short Term) 200 W
      Maximum sound pressure level 106 dB/1m
      Impedance 4 - 8 Ohm
      Crossover frequency to Woofer (recommended) 80 - 120 Hz
      Acoustic principle 2-way-system
      Enclosure type Closed
      Crossover frequency internal switch 300 /1600 Hz

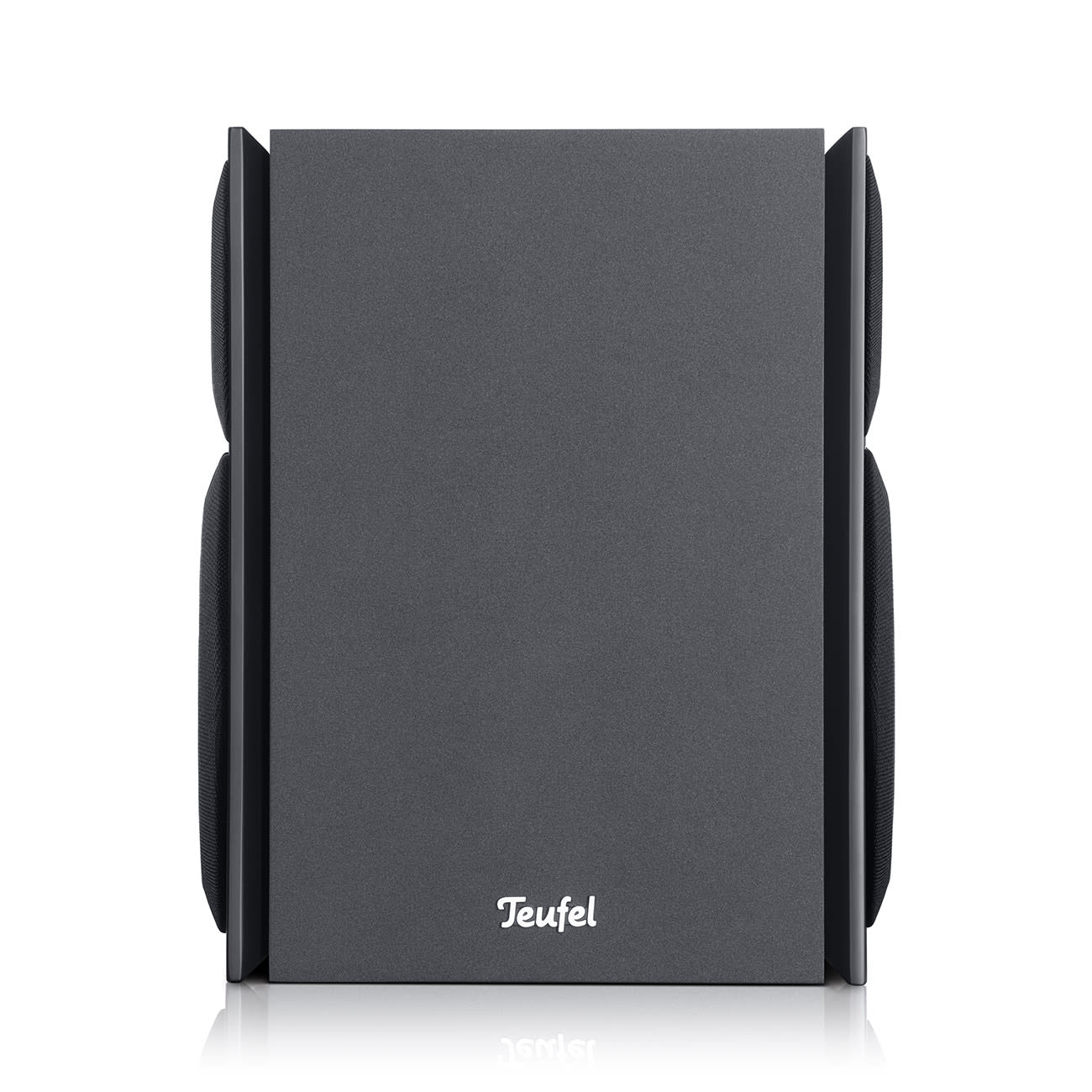

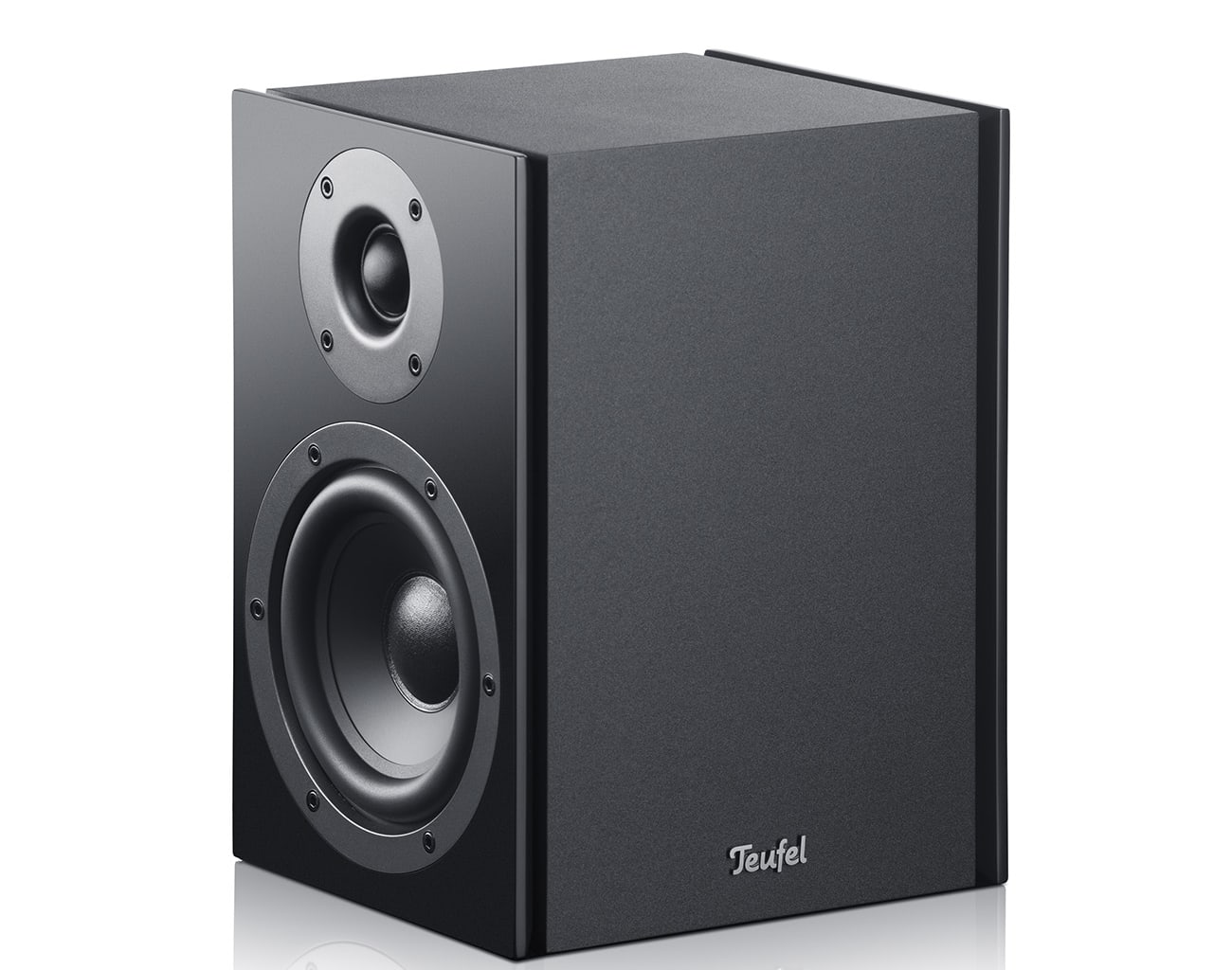

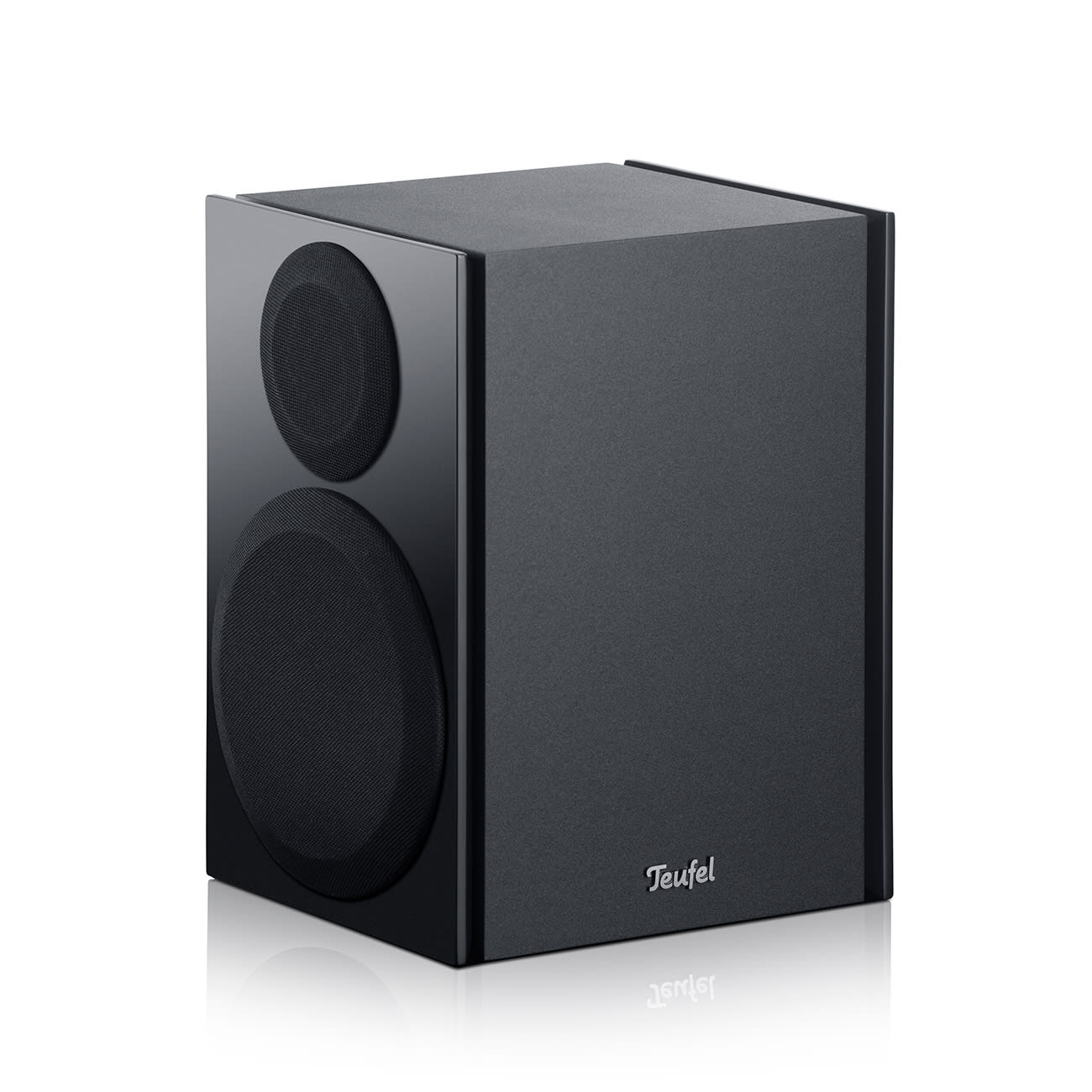

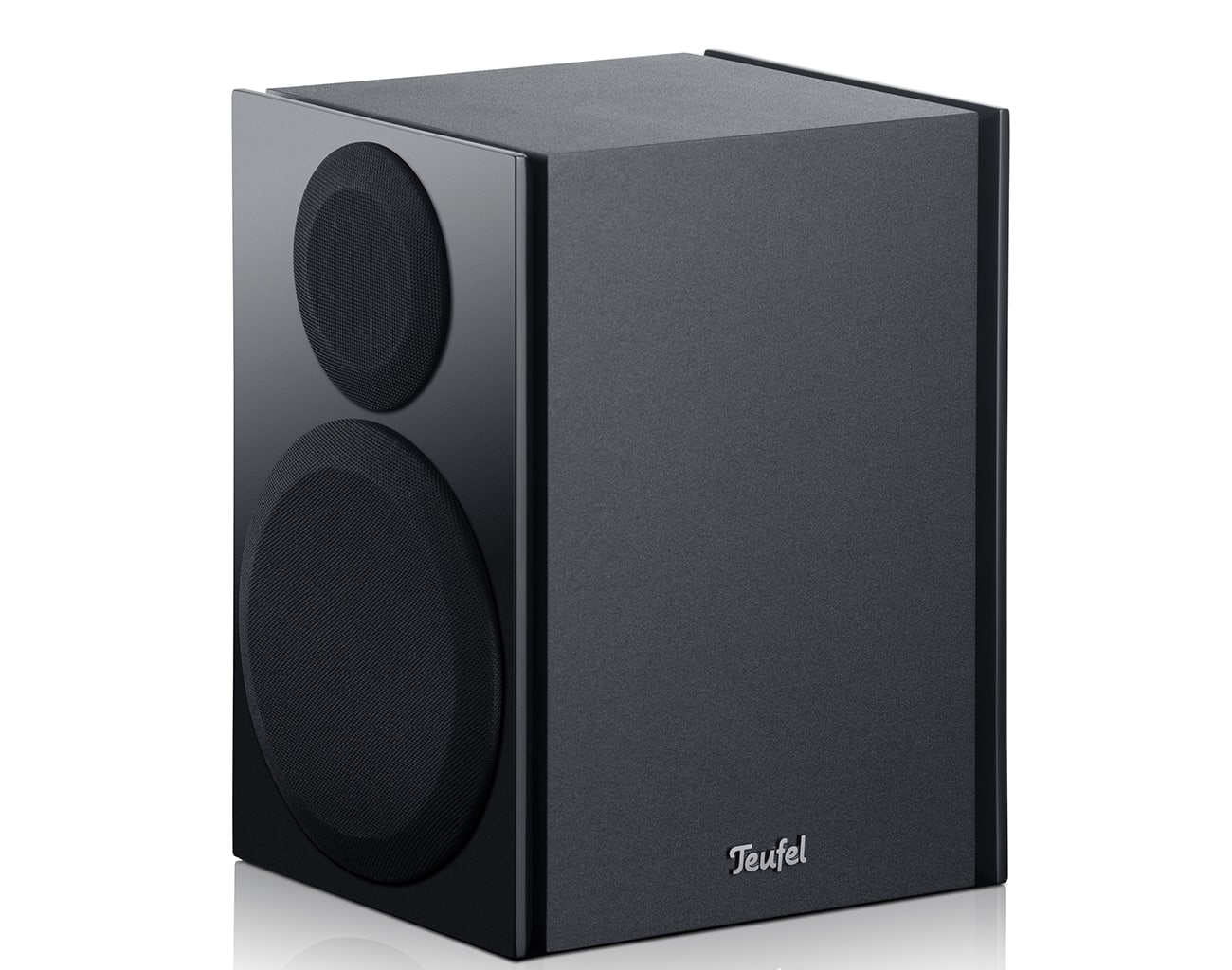

    Dipole Speaker T 500 DL 16

    The T 500 Ds are equipped with double drivers - one tweeter and one bass-midrange driver per side are phase-shifted. Such a dipole concept creates a diffused spatial representation and a gripping atmosphere. For gaming, the dipoles can be switched to direct emitters for perfect placement of your opponents.

    • Description Item
      Width 16.3 cm
      Height 26 cm
      Depth 19.3 cm
      Weight 5.13 kg
    • Description Item
      High Level speaker inputs 1
      Terminal clamps Gold-plated screw terminals
      Minimum amplifier output power recommended 25 W
    • Description Item
      Suitable for AV receiver Yes
      Banana plug compatible Yes
      Maximum cable diameter 4 mm
      Cabinet material MDF
      Cabinet surface Matte (front and back), laminate (body)
      Net internal volume 6 L
      Spikes prepared Yes
      Integrated stand Yes
      Continuous power handling (IEC - Long Term) 90 W
      Sensitivity (2.83 V / 1 m) 85 dB
      Frequency range 100 - 21000 Hz
      Peak power capacity (IEC - Short Term) 140 W
      Impedance 4 - 8 Ohm
      Crossover frequency to Woofer (recommended) 80 - 120 Hz
      Acoustic principle 2-way-system
      Enclosure type Closed
      Crossover frequency internal switch 2300 Hz

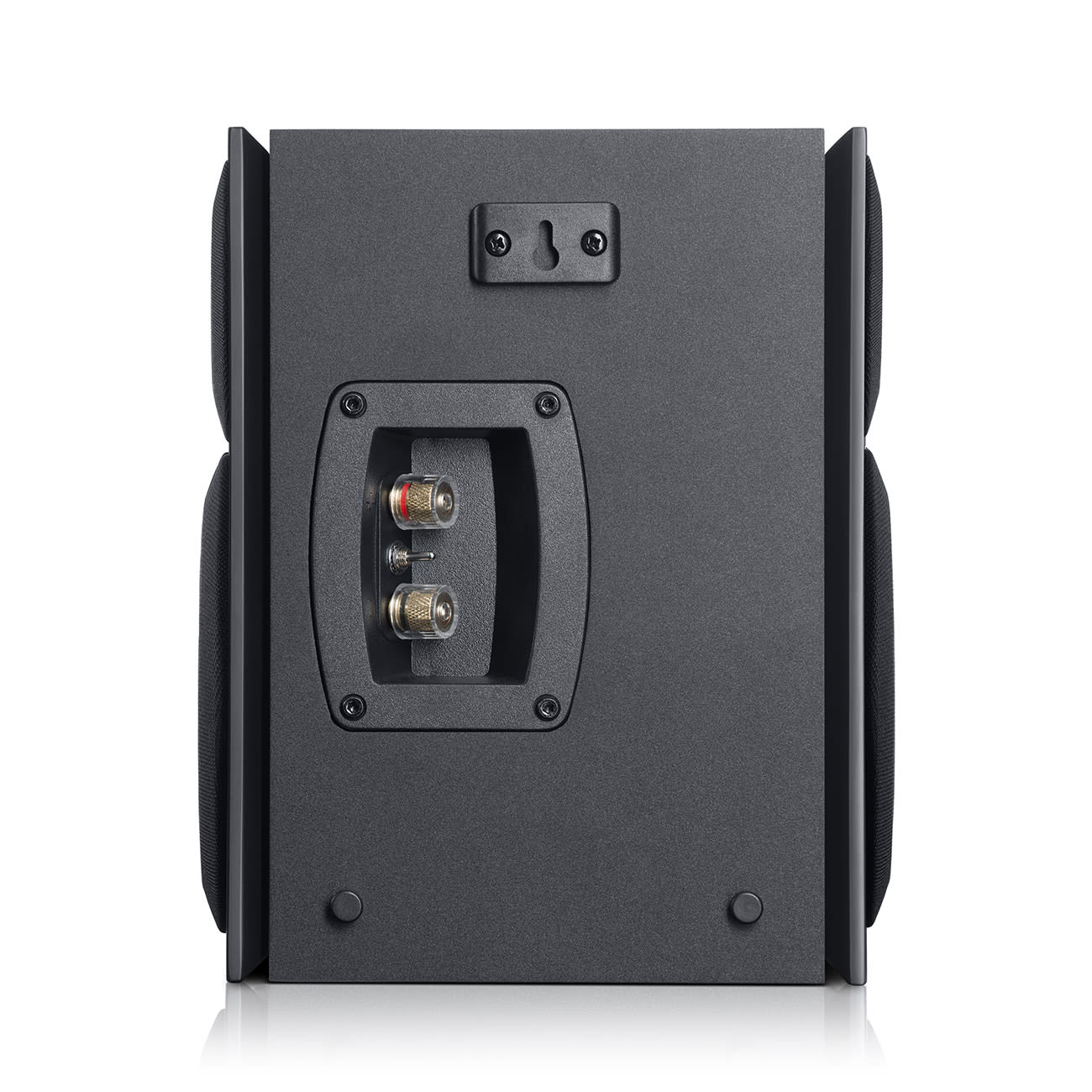

      Phase switch Dipole/Monopole Yes

    Dipole Speaker T 500 DR 16

    The T 500 Ds are equipped with double drivers - one tweeter and one bass-midrange driver per side are phase-shifted. Such a dipole concept creates a diffused spatial representation and a gripping atmosphere. For gaming, the dipoles can be switched to direct emitters for perfect placement of your opponents.

    • Description Item
      Width 16.3 cm
      Height 26 cm
      Depth 19.3 cm
      Weight 5.13 kg
    • Description Item
      High Level speaker inputs 1
      Terminal clamps Gold-plated screw terminals
      Minimum amplifier output power recommended 25 W
    • Description Item
      Suitable for AV receiver Yes
      Banana plug compatible Yes
      Maximum cable diameter 4 mm
      Diameter of the stand screw threads 6 mm
      Removable front cover Yes
      Cabinet material MDF
      Cabinet surface Matte (front and back), laminate (body)
      Net internal volume 6 L
      Keyhole plate mounted Yes
      Wall mounting brackets Yes
      Tweeter (number per enclosure) 2
      Tweeter (diameter) 25 mm
      Tweeter (material) Textile
      Bass/Midrange driver (number per enclosure) 2
      Bass/Midrange driver (diameter) 130 mm
      Bass/Midrange driver (material) Cellulose
      Continuous power handling (IEC - Long Term) 90 W
      Sensitivity (2.83 V / 1 m) 85 dB
      Frequency range 100 - 21000 Hz
      Peak power capacity (IEC - Short Term) 140 W
      Impedance 4 - 8 Ohm
      Crossover frequency to Woofer (recommended) 80 - 120 Hz
      Acoustic principle 2-way-system
      Enclosure type Closed
      Crossover frequency internal switch 2300 Hz
      Phase switch Dipole/Monopole Yes

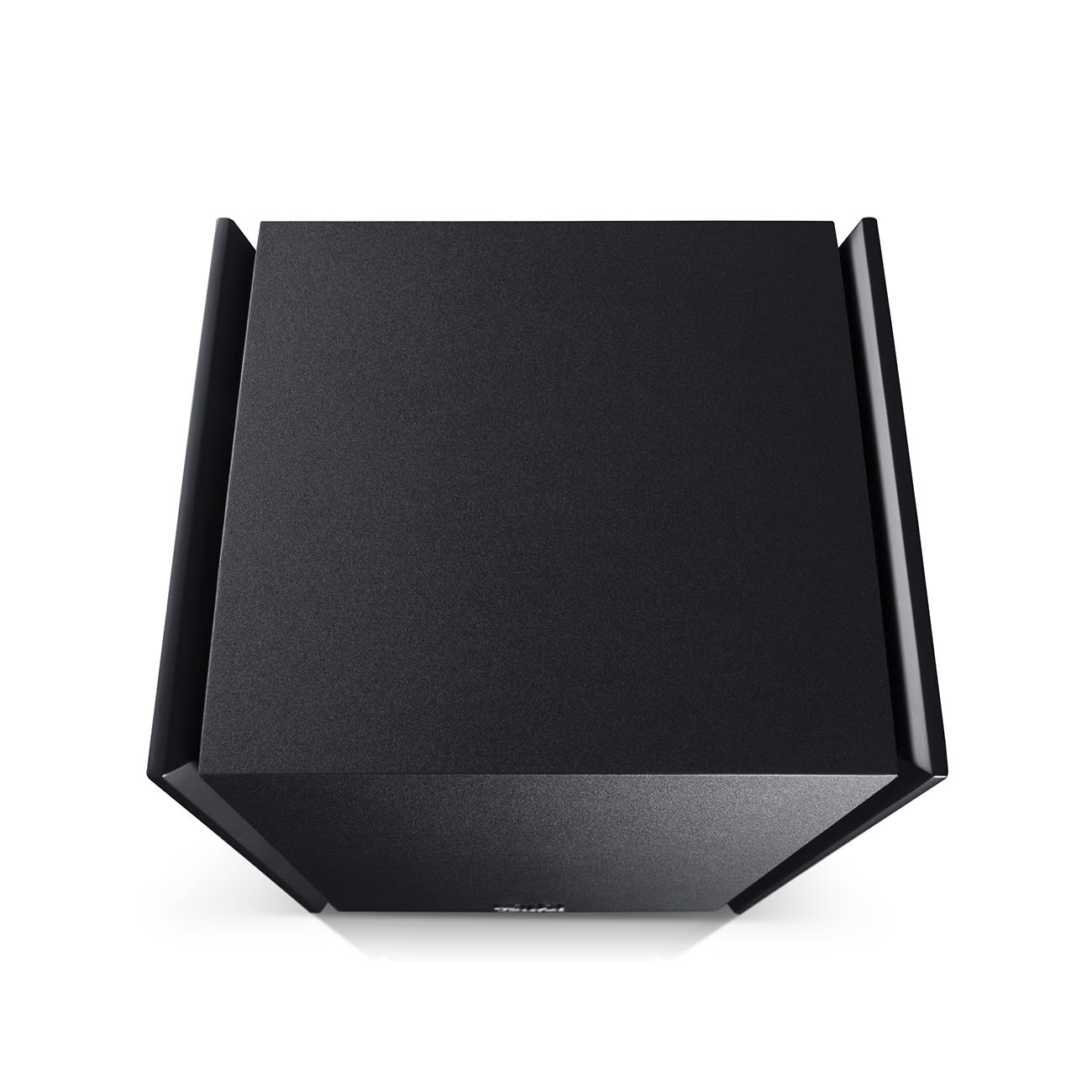

    Subwoofer S 6000 SW

    High-end subwoofer with wireless connection option

    • Description Item
      Width 37 cm
      Height 47.4 cm
      Depth 54 cm
      Weight 23.6 kg
    • Description Item
      Cinch input 1
    • Description Item
      Power supply voltage 230 V
      Automatic on/off Yes
      Maximum power consumption 250 W
      Mains cable - IEC connector (non-heating device) Yes
      Safety class 2
      Storage for settings when disconnected Yes
      Standby-Function Yes
      Standby-Power consumption 0.4 W
      Input gain adjustment Yes
      Frequency regulator (range) 20 - 50 Hz
      Level control Yes
      Phase control Yes
      Power output capacity sinus (RMS) Bass 240 W
      Amplifier configuration 1.0
      Amplifier technology Class D
      Amplifier channels 1
    • Description Item
      Lowest frequency (-3 dB) 25 Hz
      Suitable for AV receiver Yes
      Equalization port (position) Front
      Equalization port 1
      Front-firing Yes
      Cabinet material MDF
      Cabinet surface Laminated, matte
      Net internal volume 55 L
      Integrated stand Yes
      Woofer (number per enclosure) 1
      Woofer (diameter) 300 mm
      Woofer (material) cellulose
      Frequency range 25 - 200 Hz
      Maximum sound pressure level 110 dB/1m
      Acoustic principle 1-way-system
      Enclosure type Bass reflex
